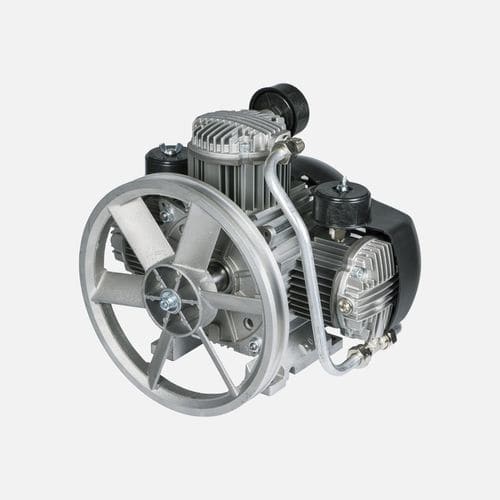

Piston pumping unit GIANO C3
waterpneumaticself-priming

Piston pumping unit - GIANO C3 - ALCONAIR - water / pneumatic / self-priming
Piston pumping unit - GIANO C3 - ALCONAIR - water / pneumatic / self-priming
Piston pumping unit - GIANO C3 - ALCONAIR - water / pneumatic / self-priming - image - 2
Piston pumping unit - GIANO C3 - ALCONAIR - water / pneumatic / self-priming - image - 3
Piston pumping unit - GIANO C3 - ALCONAIR - water / pneumatic / self-priming - image - 4
Add to favorites
Compare this product
Go to the ALCONAIR website for more information

Characteristics

Technology
piston
Fluid
water
Operation
pneumatic
Priming
self-priming
Mobility
stationary
Domain
industrial
Applications
high-temperature
Material
cast aluminum
Other characteristics
high-efficiency, low-noise, direct-drive, OEM
Flow

310 l/min
(81.89334 us gal/min)

Pressure

9 bar
(130.534 psi)

Length

340 mm
(13 in)

Width

270 mm
(10.63 in)

Height

320 mm
(12.6 in)

Weight

9 kg
(19.84 lb)

Description

The four main components for the Giano series compressors are: Piston, Cylinder, Motor and Valves. This three-cylinder compressor mounts an exclusive system of suction filter on the silencer, which makes it unique, for this type, in silence during operation. The groups are complete with fixing feet in die-cast aluminum; there is the possibility of supply in a soundproofed cabinet, with or without compensation tank, with pressure switch and accessories.
