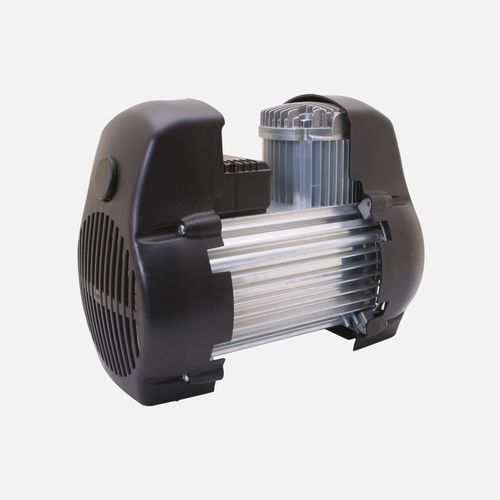

Piston pumping unit MINI TOP 2airelectricself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Fluid
- air
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- high-temperature
- Material
- cast aluminum
- Voltage
- 380 V
- Other characteristics
- belt-drive
- Flow
87 l/min, 175 l/min
(22.98297 us gal/min, 46.23011 us gal/min)- Pressure
9 bar
(130.534 psi)- Power
0.62 kW, 0.68 kW
(0.84 hp, 0.92 hp)- Length
290 mm
(11 in)- Width
230 mm
(9.06 in)- Height
125 mm
(4.92 in)- Weight
7.8 kg, 8.2 kg
(17.2 lb, 18.08 lb)
Description
The four main components for the Mini Top series compressors are: Piston, Cylinder, Motor and Valves.
This twin cylinder compressor mounts an exclusive patented suction filter system on silencer, which makes them unique, for this type, in silent operation.
The groups are complete with fixing feet in anti-vibration synthetic rubber; there is also the possibility of supplying the compressor inside a soundproofed cabinet, with or without compensation tank, with pressure switch and accessories.
