Air compressor TOOL AIR BAG DCDCmobileportable
Add to favorites
Compare this product
Characteristics
- Type
- air
- Power source
- DC
- Portability
- mobile, portable
- Application domain
- industrial
- Voltage
- 24VDC, 12 VDC
- Tank volume
0.5 l
(0.1 gal)- Flow
9.42 m³/h
(332.66 ft³/h)- Power
0.6 kW
(0.82 hp)- Length
480 mm
(18.9 in)- Width
380 mm
(14.96 in)- Height
190 mm
(7.48 in)- Weight
11 kg
(24.3 lb)- Noise level
69 dB
Description

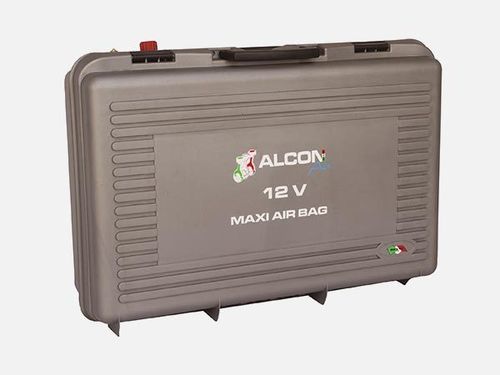

The TOOL AIR BAG DC is a direct current industrial compressor designed for portable and efficient air supply. It is available in two models: TB05SFA20040D and TB05SFA20050D, offering flexibility in voltage and power absorption. The compressor is housed in a robust case, making it suitable for mobile and on-site applications.
- Engine power: 0.600 kW (0.8 hp)
- Power absorption: 50 A (12V) / 25 A (24V)
- Voltage: 12V or 24V
- Revolutions: 2500 rpm
- Tank capacity: 0.5 L (0.1 gal)
- Cylinders-Stages: 2/1
- Max Pressure: 8 bar (116 psi)
- Air intake: 157 L/min (5.5 cfm)
- Noise Level: 69 dB(A)
- Dimensions: 480 x 380 x 190 mm
- Weight: 11 kg (24.3 lbs)
Catalogs
No catalogs are available for this product.
See all of ALCONAIR‘s catalogsOther ALCONAIR products
