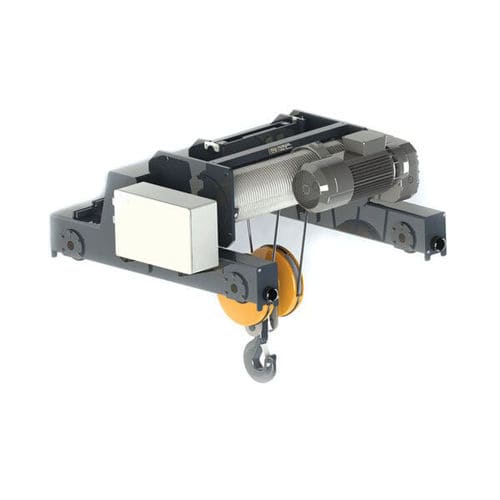

Description
Load capacity : 10,000 kg
Lifting height : 10 m
Control cable : 9.5 m
Main stress : 380 V AC – 50 Hz
Control voltage : 24 V
Load limiter : Load cell
Limit switch : Rotary switch (rotary type)
Colour : RAL 7015
Motor protection : PTC (thermal relay) ; FEM 2M;ISO M5
Stocking : 4/1
Lift motor : 1.5 – 9.5 kW IP65 ; ABM Drive-GERMANY
Lifting gear : Cylindrical GH-SERIES ; ABM “Drive-GERMANY”
Lifting speed : 0.7-4.0 m / min. ; two speed
Lift brake : Two disc brakes
100 Nm IP54
ABM “Drive-GERMANY”
Motor movement : 1 × 1.1 kW at 1450 rpm ; PGR®- WAT® – TURKEY
Trolley speed : 5-20 m / min ; Double speed with inverter (frequency converter)
Reduction gear : PD series ; PGR® – TURKEY
Trolley Brake : Two disc brakes ; TEMPORITI® – ITALY
Hook suspension : 2 pulleys (rope blocks) ; DIN 15401
Rope diameter and type : 14 mm 6 * 36Warrington Seale ; DIN655 TS1918
Remote Control : 6 buttons + 1 emergency stop
Electrical cabinet : Relay contactor equipment; Schneider electric
Frequency converters movement of the trolley;Schneider electric Or danfoss
