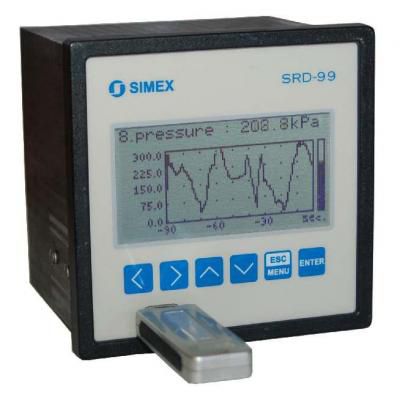

Digital recorder SRD-99

analogtemperaturedisplay

Data recorder SRD-99 designed for recording and display of present or averaging values, and presentation various technological parameters by diagram of trends. The instrument has got max. 8 measuring inputs: sensors Pt 100/500/1000 or current signals 0/4-20 mA; 1 impulse input (digital) operating process of recording and 1 USB input Host for data storing in the flash memory (input is not designed for direct connection of register with PC). Internal analog-digital transmitter has got resolution 16 bits, wich gives a big effect resolution of recording. Additionally there is the possibility of alphanumeric description (vocabulary) individually for each recording channels. The various language versions assisted by full descriptions and configuration software SRD-Toolkit cause that process of instrument programming is easy. possibility of connecting several data recorders in one net, remote collecting data, remote configuration, direct diagram of trends separately for each chanel, free configuration and recording software, isolated connection of communication RS-485 in standard.
