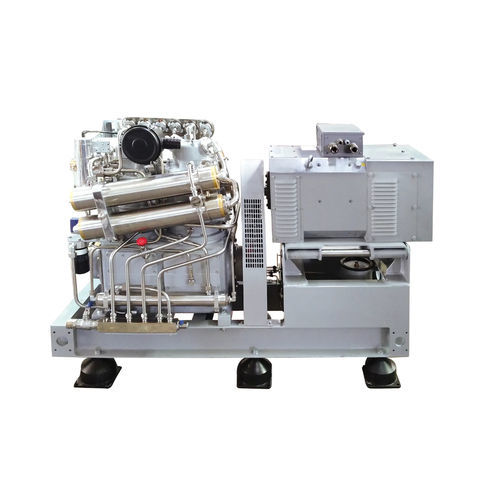

Reciprocating compressor HW 1500breathing airairDC
Add to favorites
Compare this product
Characteristics
- Technology
- reciprocating
- Type
- air, breathing air
- Power source
- DC
- Portability
- stationary
- Application domain
- industrial
- Other characteristics
- high-pressure, water-cooled, four-stage
- Pressure
250 bar
(3,625.94 psi)- Flow
1,400 l/min
(369.84 us gal/min)- Power
36 kW
(48.95 hp)- Weight
1,550 kg
(3,417.2 lb)
Description
HW 1500 series water-cooled high-pressure air compressors are ideal for industrial applications and for satisfying compressed air requirements in the hardest environments air cooling is not possible sufficient. We will be pleased to assist you with our seawater freshwater cooled high pressure air compressors.
Standard Features
Compliance with MIL-S-901D Impact Test
1st, 2nd, 3rd and 4th Stage Water Separator
Fresh/Seawater Cooling System
Intercooler Heat Exchangers (stainless)
Cathodic Protection
Check Valve
Safety Valve for Each Stage
Electrostatic Painted Chassis
Automatic Drain
Automatic Start / Stop
Water Pressure Switch
Oil Pressure Switch
Yağ Basınç Şalteri
Oil Filter
Shock Mounts
Stage Pressure Gauges, Oil Pressure Gauges, Cooling Water Pressure Gauges
Optional
AC-DC Motor Option
Purifier for Breathing Air Applications
Sectors
Military Applications
Navy (Surface Ships and Submarines)
Civil Defense Applications
Catalogs
ALKIN Catalog 2019
46 Pages
