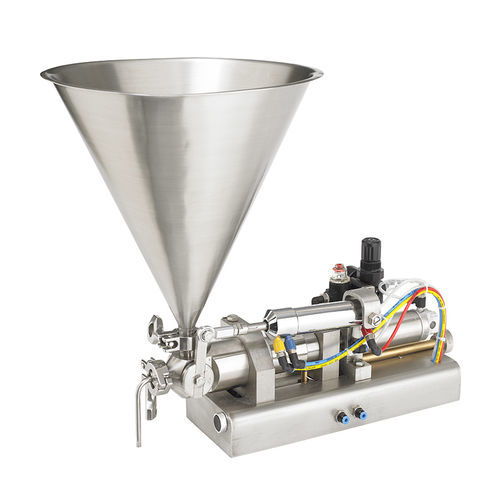

Semi-automatic filling machine 205
multi-containercontainertube

semi-automatic filling machine
semi-automatic filling machine
Add to favorites
Compare this product


Characteristics

Operational mode
semi-automatic
Container type
multi-container, container, tube
Product applications
cheese, for viscous products, for liquids, for paste
Domain
for the cosmetics industry, for the pharmaceutical industry
Type
piston
Other characteristics
compact, pneumatic, tabletop, portable
Volume

Min.: 5 ml (0.2 US fl oz)

Max.: 50 ml (1.7 US fl oz)

Description

A compact, single nozzle, semi-automatic piston liquid filler for liquids, creams, pastes, and other viscous products dispensed in smaller capacity applications. Volumes dispensed can range from 5 to 50 ml (up to 1.69 fl. oz.) per cycle. Compact size makes the Model 205 ideal for tabletop/benchtop operations for filling cosmetic and pharmaceutical products into tubes, pouches, and other small containers. Integral cutoff eliminates drips and product waste while saving the expense of separate cutoff accessories. Standard 1 1/2″ dia. cylinder included with other sizes down to 1/2″ dia. available. Production Rates - Results vary according to fill size, product characteristics and operator efficiency Features - Compact size well suited for tabletop/bench top operation. Built-in cutoff assures clean fills. Nozzle Sizes - A range of delivery nozzles allows exceptionally clean cut off of almost any liquid or semi liquid product. Fill Volumes - 0.0169 fl. oz. - 2.8 fl. oz. per cycle Cylinder Sizes - 1/2” up to 1.8” diameter Accuracy - ±0.5%, typical Product Supply - Polished, stainless steel conical 1.3 gal. capacity hopper or 90° inlet adapter with 5’ of tubing for supply from bulk source Options - Diaphragm cut off. Tri-clover fittings for hopper and nozzle connections. Push-button or footswitch initiation. A range of portable stainless steel stands - low level, standard and heavy-duty with adjustable height. Insulated hoppers. Controls - Fill volume: stroke adjustment knob at front of unit, fill & recharge, speed adjustment, initiation: spring-loaded push buttons at front of unit, footswitch initiation also available
