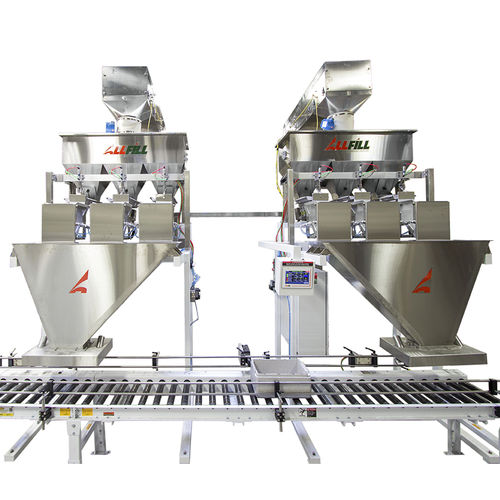

Automatic filling machine HX series

drumbucketfor food

The HX/Series is expertly designed for the feeding of free-flowing products into cases or drums ranging in weights of 5 to 75 lbs. Free-flowing products like nuts, seeds, spices or snack foods, and more can be fed, weighed, and dispensed at accuracies of ± 0.25 to 1%. The pneumatically operated HX/Series is available in 1 to 3 lanes with speeds ranging up to 20 containers per minute. The heavy-duty series consists of large volume weigh buckets, heavy-duty electromagnetic vibrator, bulk product gate, and custom designed 16” wide vibrating trays to transport product making this a series a leader in its class. Construction - All stainless steel, available in 1-4 lane configurations for semi-automatic of automatic models Production Rates - Speeds ranging up to 15 CPM per lane, depending on fill size. Controls - Embedded controller, 10.00" color touch screen HMI, foot pedal initiation Control Features - Individual control of all settings. Alphanumeric product naming. Bulk and dribble speed control. Containers per minute readout. Individual control of all settings. Automatic tare of weigh bucket. Users / Maintenance / Supervisor Login. Statistical analysis of a shift run. Weigh units of measure. Weight or count mode. Hopper Capacity - Supply hopper capacity of 5 cu. ft., other options available: hopper extensions and covers Machine Dimensions - Feed pan widths from .5" to 12" wide Storage - 100 product memory Electrical Requirements - 120V/1ph/60HZ standard (other voltages available) Pneumatic Requirements - 10 SCFM @ 60 PSI Changeovers - Fix mounted - tools required
