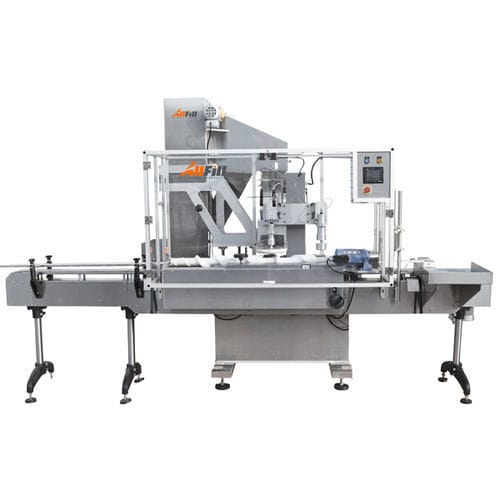

Twin-screw screw capping machine CS

pneumaticfully-automaticfor bottles

All-Fill’s fully automatic two station inline chuck capper consists of stainless steel and anodized aluminum construction with an integrated 4.5 ft3 cap hopper and can be seamlessly integrated with ancillary packaging equipment. Standard 15" wide sorting cap elevator chain feeds and orients caps for placement. This machine includes a standard cap trap for one unique cap, or for both the first and second station chuck for one unique cap, which are designed per application. Controls offered include an integrated 7" color HMI touchscreen interface with operator controls and motorized height adjustment. A PLC package controlled with up to 50 pre-programmable recipes as well as 7 security levels. Controls - Integrated 7" color HMI touchscreen interface with operator controls. PLC controlled with up to 50 pre-programmable recipes. 7 security levels (3 maintenance levels, 3 engineer levels, 1 administration level). Motorized height adjustment. Electrical Requirements - 220 single phase. Transformer charge needed for any other voltages Pneumatic Requirements - 80 psi Cap Reject System - Includes a standard cap trap along with first and second station chucks for unique caps. The cap reject system will successfully identify a misapplied cap (high, low or no cap) and reject the container to a reject collection tray. Reject system consists of a Keyence high accuracy laser micrometer sensor and adjustable mounting bracket. A pneumatic pusher is the standard reject mechanism and other options are available based on application. Also features a cap foil detection/no foil reject.
