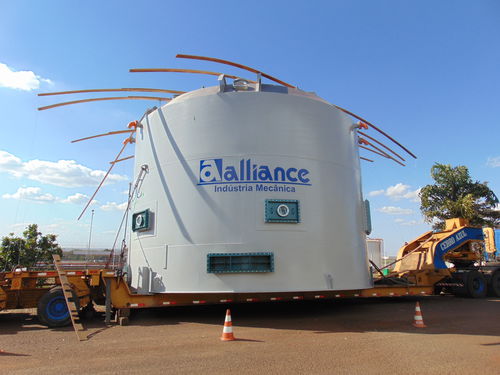

Oil extractor ALLFX series

Vegetable oil extractors drive system. Invention reveals a inedited and revolutionary drive system of vegetable oil extractor able to compensate occasional dimension differences between carrousel, minimizing all unnecessary wear between elements which compose the drive system; the abortion of this clearances, vibrations and ovalisation became possible in function of transmission gear and abortion axle of vibration and ovalisations, both located inside the compensation module and between the drive gear and carrousel gear. (Under patent n° 1001965-0). Constructive arrangement introduced in extractor allows the reduction of physical filter conventionally used, after all, foresees the existence of a grill which acts like component of filtering and drainage. The grid is located inside the perimeter delimited by the contouring structural wall, centrally arranged and formed by multiple segments composed of a contouring edge and multiple bars. (Under patent n°9001469).
