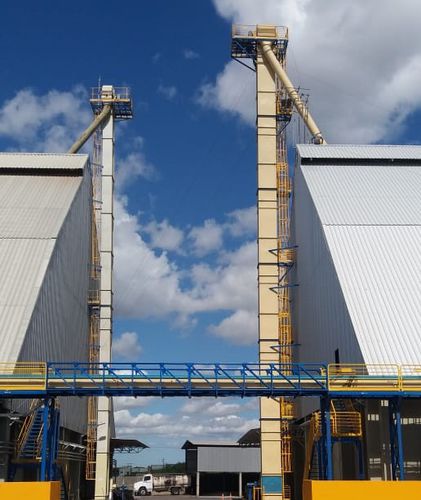

Industrial bucket elevator ALLEL

vertical

Alliance elevators are used in vertical transport (elevation), have a robust construction, are designed to transport the most varied particulate and granular materials, among others, according to the customer's needs. They are built on a self-supporting structure composed of modular sets in carbon steel or stainless steel. They have several mounting combinations, which: • Polyethylene mugs: Made by injection molding at high pressure, they work with products with a temperature between -50°C to 90°C. They are lighter than traditional metal mugs, this requires less equipment power; • Metallic Mugs: They are special, with protection in sectors that attack premature wear with special reinforcements. According to specification, they can be manufactured in Carbon Steel, Galvanized, Stainless Steel, Aluminum or Cast Iron. • Polyester/Nylon Elevator Belt: Normally used, they are recommended for any elevator system for industrial, agricultural, etc. use. are recommended for dry materials and temperatures close to room temperature; • Lifting Chain: assembled with a steel chain, they are indicated for lifting materials with a high specific weight, sensitive to rupture, extremely abrasive and with high temperature; • Structured Explosion Doors for a quick and safe installation to protect the equipment. In the event of an explosion, the structure of the machine detonates without detachment. They are made of aluminum and do not suffer corrosion, keeping their breaking section intact.
