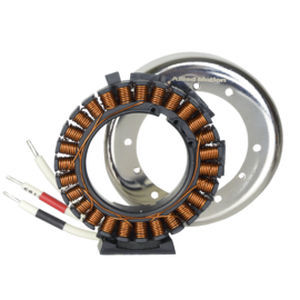

Outer-rotor motor KinetiMax HPD KMF072 Series

brushlessDC24 V

Outer-rotor brushless DC motor available in three stack-lengths The KinetiMax 072 High Power Density (HPD) is an outer-rotor brushless DC motor that comes in frameless stator-rotor part sets. With three stack lengths to choose from, the KinetiMax 072 HPD features a nominal output torque rating of 0.43 to 0.98 Nm, resulting in an output power of 166 to 232 Watts in its nominal working point. The compact stator-rotor set offers an ideal solution where total motor length is critical in space constrained applications. And with an efficiency rating of over 85% in its normal working area, the KinetiMax 072 HPD motor is ideal for battery-fed applications, where it helps maximize the running time per battery charge. Our KinetiMax 072 HPD motor features a large stator bore diameter of 44.3 mm, which allows for cabling to pass through the motor. Featuring a higher pole count and outer-rotor design, the KinetiMax 072 HPD motor creates a low cogging torque combined with high peak torque which improves motor behaviour in servo applications. Features & Benefits • Winding selection for other Voltages • Rated torque 0.16 to 6.30 Nm • High torque-to-weight ratio • Excellent efficiency from 81% up to 91% over a wide range around the nominal working point Typical Applications • Automated Guided Vehicles (AGV) • Robotics (arms, joints) • Handheld hydraulic power tools • Material handling systems • Medical equipment • Rotary actuators • Gimbals
