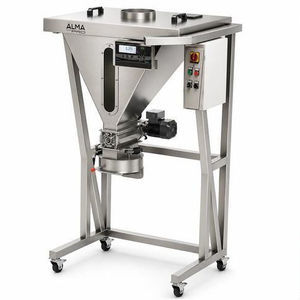

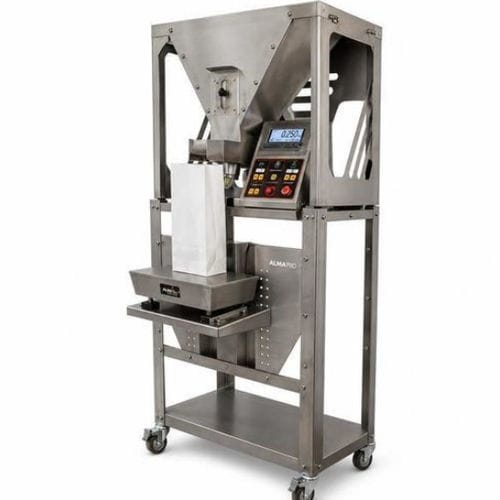

Vertical bagging machine VIBRA 3

weightsemi-automaticsachet

Presentation
Auto-calibration: an ALMA PRO innovation that simplifies the setup of the bagging machine. The machine automatically adjusts the fly-weight, the dosing range and the bag finishing speed for optimal accuracy and throughput. This compact weighing bagger is the smaller sister of the VIBRA12 and is designed for precise dosing and packaging of dry products into sachets, boxes or various containers.

Applications
Thanks to its versatility, it can be used in milling workshops, food processing units, roasting facilities, artisanal pasta producers and packaging companies. It enables accurate packaging of a wide variety of products:

• Flour
• Cereals and grains
• Whole-bean or ground coffee
• Pasta
• Legumes
• Dried fruit
• Nuts and hazelnuts
• Candies and confectionery
• Granules
• Hardware items
• Powders

Advantages

• Accurate dosing up to 6 kg
• Fast and consistent packaging
• Easy to operate
• Suitable for a wide range of dry products
• Compact footprint for artisan workshops and SMEs
• Reduced product losses
• Improved productivity

Technical specifications

• Throughput up to 300 bags or boxes/hour: Pasta (small shells) 500 g: 6 s | Hemp flour 500 g: 5 s | Wheat flour 1 kg: 7 s | Rice grains 1 kg: 7 s | Biscuits Ø2.5 cm 100 g: 10 s | Fusilli 250 g: 5 s | Hazelnuts 250 g: 6 s | Spice jar 40 g: 4 s
• Anti-bridging vibrator at the rear of the hopper with automatic and pulse modes (manual action)
• Legal metrology versions available: 200g < 3 kg | ML²: 50g < 3 kg | ML²: 200g < 6 kg
• Non-legal metrology version: 0 - 6 kg / Accuracy 2 g
• Dimensions: L = 650 mm, P = 600 mm, H = 1450 mm
• Weight: 40 kg
• Start: manual and foot pedal (pedal supplied)
• Electrical power: 230 V, 50 W, 50 Hz
• Materials: Food-grade stainless steel 304L
• Hopper capacity: 25 litres
