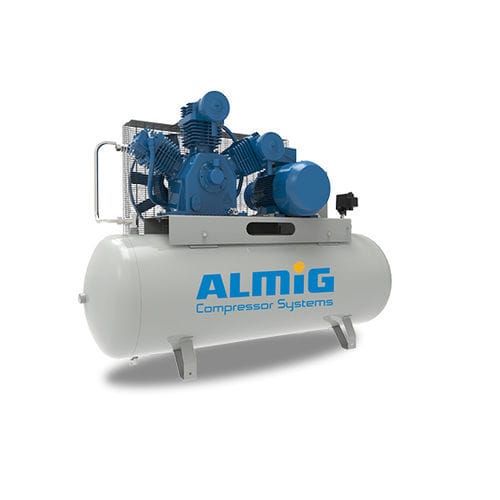

Piston compressor HLA series
airelectricstationary

Piston compressor - HLA series - ALMIG Kompressoren GmbH - air / electric / stationary
Piston compressor - HLA series - ALMIG Kompressoren GmbH - air / electric / stationary
Add to favorites
Compare this product

Characteristics

Technology
piston
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-lubricated
Applications
service, cylinder, valves
Pressure

10 bar
(145.04 psi)

Flow

Min.: 181 l/min
(47.82 us gal/min)

Max.: 1,220 l/min
(322.29 us gal/min)

Power

Min.: 1.5 kW
(2.04 hp)

Max.: 11 kW
(14.96 hp)

Length

Min.: 673 mm
(26.5 in)

Max.: 1,987 mm
(78.23 in)

Width

Min.: 906 mm
(35.67 in)

Max.: 1,749 mm
(68.86 in)

Height

Min.: 496 mm
(19.53 in)

Max.: 812 mm
(31.97 in)

Description

With the HLA series, ALMiG offers, in addition to its comprehensive portfolio of screw compressors, a new series of oil-lubricated piston compressors. The use of high quality cast iron for the main components such as cylinders, cylinder head, connecting rods and pistons and the use of stainless steel valves and modern roller bearings is evidence of the high quality of these piston compressors. All these measures result in a very high durability and thus long service life of the entire piston compressor. The HLA series impresses with reliable and robust operation at comparably low cost. Advantages: Energy-efficient motors High-quality and robust components Long service life Variety of variants
