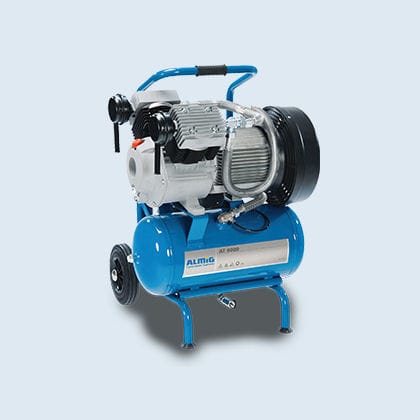

Piston compressor AP/AT series

airelectricmobile

The AP/AT series of piston compressors from ALMiG consist of mobile compressors in industrial quality with direct drive. They are available with volume flows of 190 - 620 l/min and container sizes of 50 - 200 l. Special features of the mobile compressed air units: High-quality air intake filters, generously dimensioned, with easily replaceable filter inserts Valve plates made of high-quality steel with stroke limitation and long service life Quick-release coupling made of steel with ULTRA-FLOW valve for high flow capacity Sturdy chassis with large, wide rubber wheels for comfortable transport and safety Pressure lines with lamellar surface for best cooling and long service life Three-phase plug with phase inverter, simply select the correct direction of motor rotation Two pressure gauges for tank and working pressure generously dimensioned cast iron fans for best possible cooling Brand-name pressure switch with relief valve and hour meter for optimum monitoring Robust quality energy-saving motor of class Eff 1 for lower operating costs Control unit with filter regulator, lubricator, pressure gauge and 3 quick-release couplings (AT 6002, 7002)
