- Centrifugal compressor
- ALMIG Kompressoren GmbH

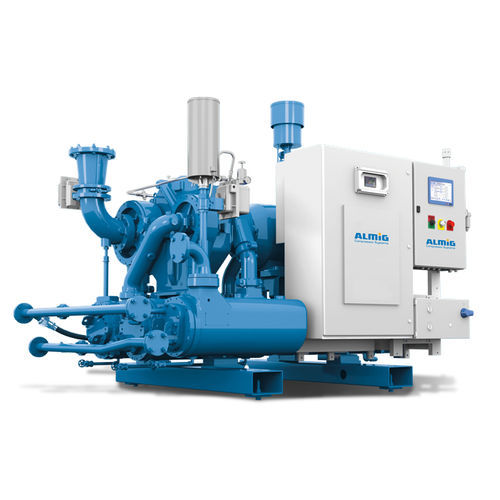

Centrifugal compressor DYNAMIC P airelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Type
- air
- Power source
- electric
- Portability
- stationary
- Lubrication
- oil-free
- Other characteristics
- compact, three-stage
- Pressure
Max.: 10 bar
(145.04 psi)Min.: 3 bar
(43.51 psi)- Flow
Max.: 330 m³/min
(11,653.84 ft³/min)Min.: 25 m³/min
(882.87 ft³/min)- Power
Max.: 2,240 kW
(3,045.55 hp)Min.: 185 kW
(251.53 hp)
Description
The DYNAMIC P series includes three-stage, oil-free tubocompressors in the power range from 185 to 2240 kW. The extremely powerful units deliver a volume flow of 25 - 330 m³/min at a pressure of up to 10 bar(g). The field of application of the turbo compressor series DYNAMIC is manifold and is mainly in the large-scale industry of petrochemistry, pharmacy, medical technology, refineries, mines, steel and automotive industry. Everywhere where a constant, reliable and economical compressed air supply with 100% oil-free compressed air is required.
Advantages of ALMiG turbo compressors:
100% oil-free compressed air
Low life cycle costs
Highest energy efficiency
Compact design with simultaneously high delivery rate
User-friendly control system
Minimal maintenance requirements
