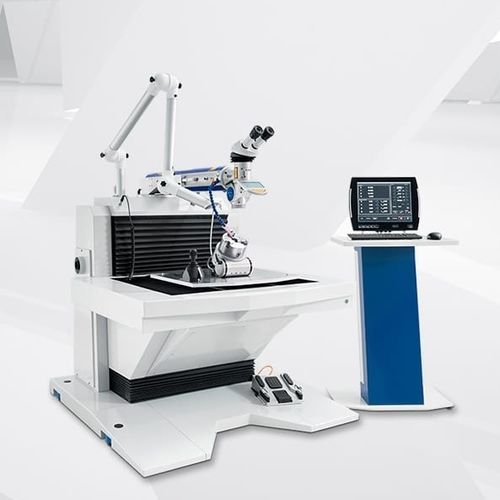

Fiber laser welding system AL-TW Series

manualautomaticsemi-automatic

The AL-TW is a stable work bench with integrated fiber laser. It is available with 300, 450, 600, or 900 watt laser sources. It allows you to weld pulsed or in CW mode (CW = continuous melt). A keyhole is made during CW welding (deep penetration depths into the material are possible as a result). The lasers and movement system are easily operated from an intuitive touch screen on the side console. In addition, the laser parameters can also be configured or adjusted during welding by means of the patented multifunctional footswitch. This allows you to remain fully focused on laser welding, without requiring you to take your hands off the workpiece. Your benefits at a glance: • Open laser system – work without restrictions in your operational space• • Safe working – the system fulfills performance level d • Extremely robust due to the stable steel construction • Welding in CW mode possible, thus high penetration depth and high welding speed • Precision joystick • Easy to operate via intuitive touch screen • Low maintenance, as no lamps have to be changed • or mirrors switched out WOULD YOU LIKE TO FIND OUT MORE? A large and stable work plate holds workpieces weighing up to 450 kg and facilitates their precise positioning. The joystick for movements along the X, Y, and Z axes responds very precisely, and all axes directly follow the joystick movement, either • manually by joystick, • semi-automatically • or in automatic mode with the WINLaserNC software. The AL-TW is an open laser system: Work without any restrictions to your operational space. When implementing laser safety measures, we can assist you with our laser safety concept.
