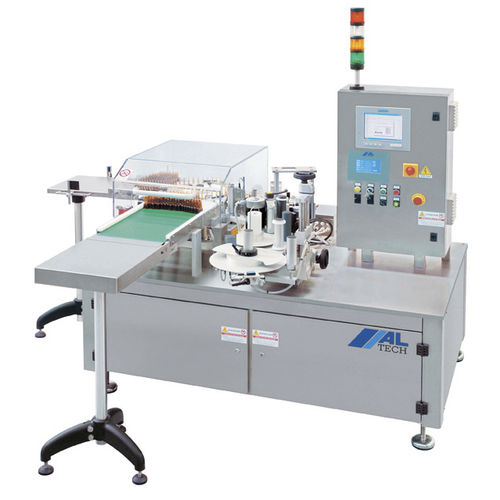

Automatic labelling machine ALpharma A

for bottlesfor vialsfor the pharmaceutical industry

Product overview
Designed for labelling vials and small bottles. Labelling is performed tray-to-tray, using an 'in-the-star-wheel' system. Maximum speed: up to 150 products/min. Suitable for pharmaceutical production lines and integration in validated environments.

Available options

• Overprinting: hot-foil or thermal-transfer printing
• Near end-of-reel and rewinder-full monitoring
• Near-product monitoring
• Barcode checking
• Verification of overprinting with print-mark readers or camera
• Label presence verification with luminescence sensors or camera
• Rejection/expulsion of non-conforming products with expulsion confirmation and rejects box full monitoring
• Management of formats, alarms history and rejects logging

Technical specifications
Power supply: 400 V 50 Hz three-phase
Power consumption: 1 kW
Maximum speed: up to 150 pcs/min

Dimensions and documentation
Layout/drawing available on request (layout image shown on product page). Installation footprint depends on selected options and conveyor configuration. Documentation and validation support (GAMP 4: IQ/OQ/PQ) and FAT/SAT tests available on request.

Characteristics / Technical specifications

• Model: ALpharma A
• Application: labelling of vials and small bottles
• Labelling method: tray-to-tray, 'in-the-star-wheel'
• Maximum speed: up to 150 products/min
• Power supply: 400 V 50 Hz three-phase
• Power consumption: 1 kW
• Optional overprinting: hot-foil or thermal-transfer
• Optional monitoring: near end-of-reel, rewinder-full, near-product monitoring
• Optional quality checks: barcode checking, print-mark reading or camera verification, luminescence sensors or camera for label presence
• Reject handling: expulsion with confirmation and rejects box full monitoring
• Data management: formats management, alarms history and rejects logging
