beam expander / laser
Variable

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
beam expander beam expander - Variable
{{requestButtons}}

Characteristics

  • Options:

    beam, laser

Description

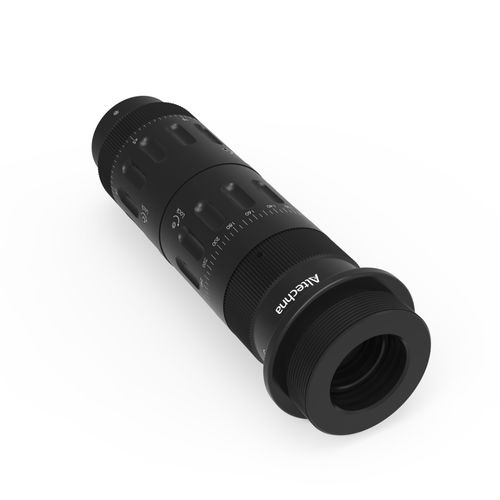

Tunable beam expander is Galilean type telescope, which allows compact design which is reasonable for industrial environment. Emplyed lenses are air spaced, thus expanders are suitable for high power applications. Altechna offers three different type attenuators, each type is designed for specific application:

For Nd:YAG lasers
For Femtosecond lasers
For two wavelengths (e.g. High power beam + guiding beam, or fundamental + harmonic).

Standard beam expanders are designed for four most popular lasers: Nd:YAG; Ti:Sapphire; Yb:KGW and Yb:YAG, but custom wavelengths are available. Standard mouinting thread is M27x1, which is compatible with common 4-axis mounts. Models with 1.5x-5x and 1x-8x magnification distinguish by their “fixed-length” design which simplifies both integration and usage.

Product features:
* "One turn adjusment" option
* Expansion ratios 1.5x-5x; 5x-8x; 2x-8x
* High laser induced damage threshold
* Transmission better than 97% for both wavelengths
* Fixed-length design option
