Cutting machine CNC controller F 45 ProDrive

3-axis1-axis2-axis

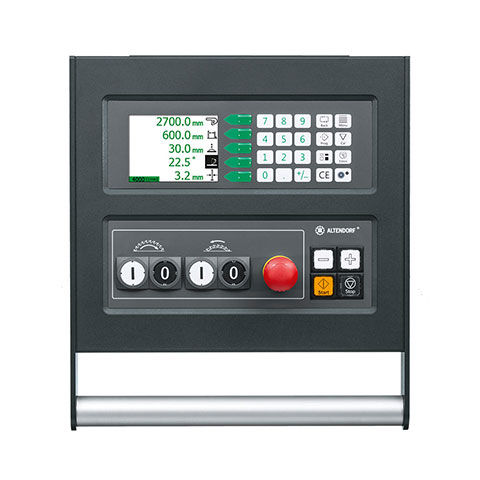

F 45 ProDrive - Control up to four axes and more! The special feature of the F 45 ProDrive is its very simple operation and clarity. It has a 3.5 "color screen with a separate keyboard. You can use the green arrow keys to select all the axes. The values are entered using the separate keyboard. >Motorised rip fence adjustment * * >Motorised adjustment of the UNO 90 CNC crosscut fence * >Automatic position correction for rip fence and crosscut fence when saw blade tilted >Digital speed display or infinitely variable speed control (VARIO) * >Motorised scorer unit, two or three axes * >Continuous precision axis control using +/- keys * >Control of the vacuum clamping system in the sliding table * >Easy axis calibration >Machine diagnostics. Operating hours counter. USB interface >"Back" function to recall last set of dimensions entered >Memory for 99 cutting programmes >Groove function: rip fence automatically moves through sequence of positions necessary to realise the groove * optional accessory
