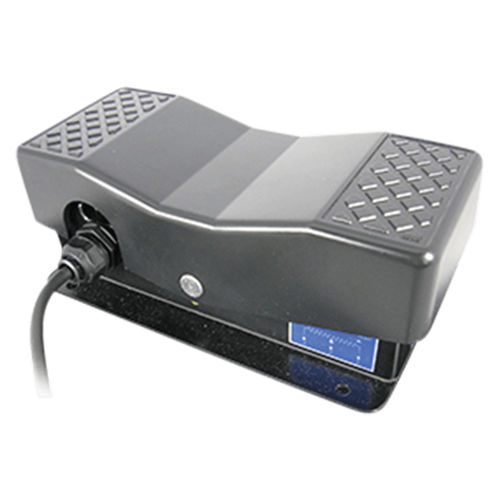

Control pedal 200FCW

potentiometer2 pedals

200FCW Industrial Footpedal Wig-wag industrial footpedal with incorporated potentiometer and a conductive plastic element About the 200FCW Industrial Footpedal Wig-wag industrial footpedal with incorporated potentiometer and with a conductive plastic resistive element Features 200FCW Stepping see-saw pedal type IP54 Potentiometer Conductive plastic Specifications Operating method Stepping see-saw pedal type Operating angle Approx. ±11° Operating force Standard spring return device: Automatically return to center. Abt. 20N(Abt. 2.000gf.) Operating temperature range -20°C~+65°C Vibration 10~55Hz 98m/s² Shock 294m/s² Life expectancy Approx. 1.000.000 operations Mass Approx. 1.5kg Potentiometer incorporated SFCP22E, 10kΩ ±20%, 0.35W, independent linearity tolerance ±3% (conductive plsatic resistive element) Electrical rotating angle Approx. 75° Center shortened zone: With a shortened zone with abt. 8° in the center position Ceneter returning accuracy 50% v1.5% Output smoothness Below 0.2% against input voltage Contact resistance variation Below 5% C.R.V. Resolution Essentially infinite Dielectric strength 1 minute at 500V.A.C. Insulation resistance Over 1.000MΩ at 500VDC
