Rotary potentiometer FSCB30A

manualconductive plasticprecision

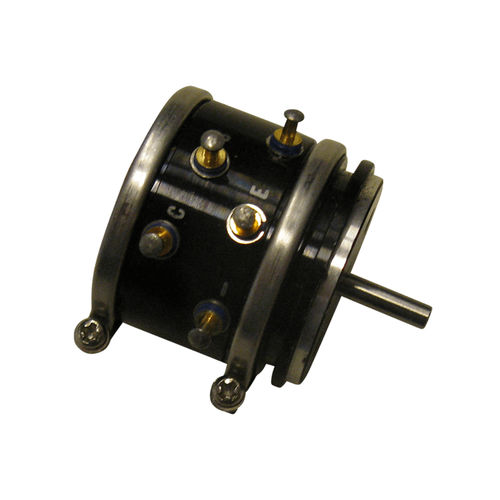

FSCB30A Sinus Cosinus Potentiometer Non-Linear Conductive Plastic (Servomount) SIN/COS Potentiometer About the FSCB30A Sinus Cosinus Potentiometer The FSCB30A is a servomount type potentiometer with ball bearings and precision sine/cosine output. It is available in multiple diameters. Features SIN/COS potentiometer FSCB30A Dimensions (mm) DxL: 29×22.5 Element: conductive plastic Function characteristics: 360°sin/cos Conformity peak to peak (± %): 1.0 to 0.7 Mechanical travel: 360° Electrical travel: 360° Standard Specifications Available Multi-ganged (available up to 3 gangs. Housing length is extended by 16mm per 1 gang), shaft with front and rear extension (rear shaft with 3mm dia. and 10mm length), shaft dia. (ø3.175mm) with inch dimensions, special machining on the shaft.
