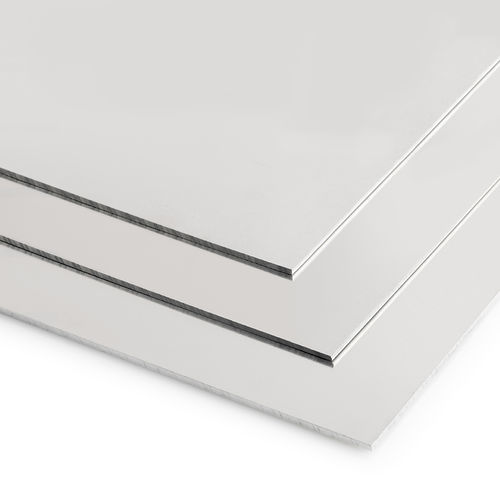

Aluminum sheet EN AW 5083
Add to favorites
Compare this product
Characteristics
- Shape
- sheet metal
- Thickness
Max.: 520 mm
(20.472 in)Min.: 1.5 mm
(0.059 in)- Length
Max.: 8,000 mm
(314.96 in)Min.: 2,000 mm
(78.74 in)- Width
Max.: 2,500 mm
(98.43 in)Min.: 1,000 mm
(39.37 in)- Mechanical resistance
Max.: 340 MPa
Min.: 275 MPa
- Elasticity
Max.: 250 MPa
Min.: 125 MPa
Description
Alloy with excellent corrosion behaviour with excellent mechanical properties and weldability.
In the H321 state, the intergranular corrosion resistance is improved and in the H34 state, the hardness is higher. This makes the products in these states ideal for marine and transport applications respectively.
Possibility of cutting to size.
Products manufactured according to EN 485-2, EN 485-3, EN 485-4 and EN 573-3.
