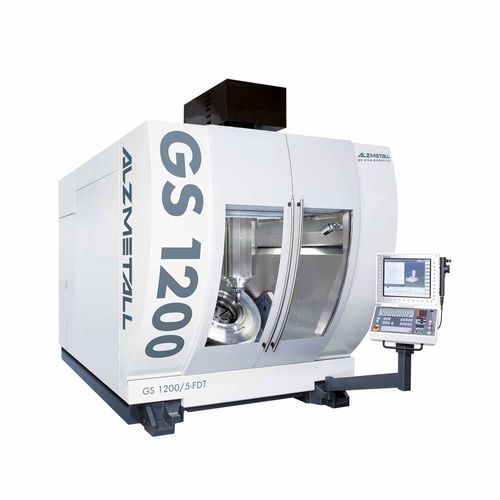

5-axis machining center GS 1200/5-FDT
vertical

Add to favorites

Compare this product

Go to the Alzmetall website for more information

Characteristics

Number of axes

5-axis

Spindle orientation

vertical

X travel

1,000 mm
(39 in)

Y travel

1,200 mm
(47 in)

Z travel

800 mm
(31 in)

Rotational speed

Min.: 12,000 rpm
(75,398 rad.min-1)

Max.: 24,000 rpm
(150,796 rad.min-1)

Power

Min.: 29.4 kW
(39.97 hp)

Max.: 60 kW
(81.58 hp)

Description

Working range Travel X/Y/Z-axis 1000/1200/800 mm Distance spindle to table min./max. 167/967 [150/950] mm NC-swivelling rotary table Drive for swivel- and rotary axis direct drives (torque drives) Swivel range of the A-axis +140°, -140° Swivel speed A-Axis max. 30 rpm Rotary range C-Axis 360° endless Rotary speed C-Axis max. 560 rpm Driving torque cooled 2400 [3400] Nm Rotary table C-Axis ø 800 mm, [ø 900], [Ø 1000], [Ø 1200 x 1000 mm] 8 T-slots acc. to DIN650, 4 x 18H12 4x18H7 Radial arrangement 8 x 45° Center boring Ø 50H7 (depth 8mm] Table load max. 2500 kg Rotary diameter on A-Axis level max. Ø 1220 mm Swivel diameter around A-Axis max. Ø 1240 mm Table surface below A-axis 100 mm Feed drive system X-Y-Z-Axis AC servo drives; maintenenancefree, digital Rapid traverse X-Y-Z on the TCP max. 60 [100] m/min Feed force X-Y-Z (40%) 12 kN
