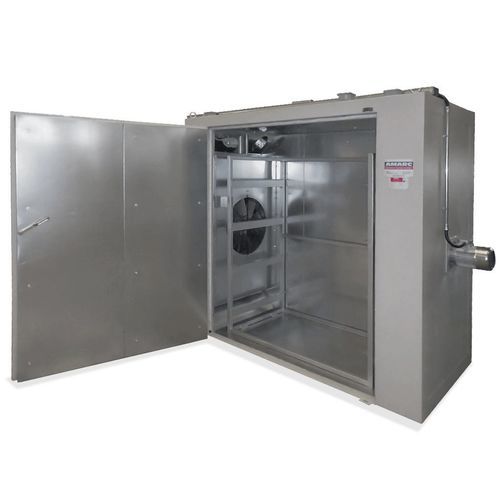

Conveyor oven FCS series

dryingpolymerizationhardening

Overview
AMARC designs and constructs industrial ovens and dryers for multiple industrial sectors for thermal processes up to +250°C. AMARC ovens (standard and custom versions) are designed to provide high thermal efficiency, ease of use and a high level of operational safety.

Applications

• Polymerisation
• Drying
• Pre-heating
• Thermal treatment
• Thermoforming processes
• Stress-relief
• Stabilisation
• Curing
• Hardening
• Vulcanisation
• Post-heating
• Maintenance

Construction
AMARC industrial ovens consist of a welded carbon steel frame with load-bearing walls made of metal sheets and insulating mineral wool (asbestos free). The standard construction includes a painted carbon steel exterior and a galvanised steel interior. Sealed construction with seam-welded panels is provided in specific conditions.

• Structural sturdiness: Designed for continuous cycle operation and to withstand stresses during loading/unloading.
• Thermal insulation: Structure designed to avoid thermal bridges and ensure minimum heat dispersion and energy saving.
• Materials: Standard: painted carbon steel exterior, galvanised steel interior. Optional: AISI304 (or other stainless steel) for interior/exterior and accessories (control panel enclosure, ventilation unit, door systems).
• Sealed construction (welded panels) used when:
  • operating temperature is high;
  • there is high chamber pressure;
  • processes generate dense and/or aggressive emissions.

Operation
Heat transfer is mainly by air convection. Air is heated by resistive units and directed onto parts through purpose-made slits. Temperature regulation uses a digital temperature regulator paired with probes. Research into air flows yields even distribution, faster ramps and required heat transfer characteristics.

• Air flow configurations: Horizontal, Vertical, Mixed (horizontal/vertical)
• Typical achievable tolerance: +/- 2°C with respect to empty-chamber temperature setting (when correctly designed)
• All ovens undergo temperature mapping by qualified laboratories using certified calibration instruments.

Products Range
AMARC produces both custom ovens and standard series. Standard electric heated batch ovens are available in the FCS 150 series (up to +150°C) and FCS 250 series (up to +250°C). Custom designs cover dimensions, loading methods, control logic, safety devices, automation level and other customisations.

FCS 150 series ovens - for processes up to +150°C (table)
Model | Max Temp. (°C) | Height (mm) | Width (mm) | Depth (mm) | Volume (m³) | Fan Flow Rate (m³/h) | Power (kW)
FCS 150-01 | 150 | 1500 | 1000 | 1000 | 1,5 | 3050 | 15
FCS 150-02 | 150 | 1500 | 1500 | 1000 | 2,25 | 3050 | 22,5
FCS 150-03 | 150 | 1500 | 1500 | 1500 | 3,375 | 3050 | 22,5
FCS 150-04 | 150 | 2000 | 1500 | 1500 | 4,5 | 3050 | 30
FCS 150-05 | 150 | 2000 | 1500 | 2000 | 6 | 3850 | 30
FCS 150-06 | 150 | 2000 | 1500 | 2500 | 7,5 | 4750 | 37,5
FCS 150-07 | 150 | 2000 | 1500 | 3000 | 9 | 5400 | 37,5
FCS 150-08 | 150 | 2000 | 2000 | 1500 | 6 | 3850 | 30
FCS 150-09 | 150 | 2000 | 2000 | 2000 | 8 | 4750 | 37,5
FCS 150-10 | 150 | 2000 | 2500 | 1500 | 7,5 | 4750 | 37,5
FCS 150-11 | 150 | 2000 | 2500 | 2000 | 10 | 6150 | 37,5
FCS 150-12 | 150 | 2000 | 3000 | 1500 | 9 | 5400 | 37,5
FCS 150-13 | 150 | 2000 | 3000 | 2000 | 12 | 6150 | 45

FCS 250 series ovens - for processes up to +250°C (table)
Model | Max Temp. (°C) | Height (mm) | Width (mm) | Depth (mm) | Volume (m³) | Fan Flow Rate (m³/h) | Power (kW)
FCS 250-01 | 250 | 1500 | 1000 | 1000 | 1,5 | 3050 | 22,5
FCS 250-02 | 250 | 1500 | 1500 | 1000 | 2,25 | 3050 | 30
FCS 250-03 | 250 | 1500 | 1500 | 1500 | 3,375 | 3050 | 30
FCS 250-04 | 250 | 2000 | 1500 | 1500 | 4,5 | 3050 | 37,5
FCS 250-05 | 250 | 2000 | 1500 | 2000 | 6 | 3850 | 37,5
FCS 250-06 | 250 | 2000 | 1500 | 2500 | 7,5 | 4750 | 45
FCS 250-07 | 250 | 2000 | 1500 | 3000 | 9 | 5400 | 45
FCS 250-08 | 250 | 2000 | 2000 | 1500 | 6 | 3850 | 37,5
FCS 250-09 | 250 | 2000 | 2000 | 2000 | 8 | 4750 | 45
FCS 250-10 | 250 | 2000 | 2500 | 1500 | 7,5 | 4750 | 45
FCS 250-11 | 250 | 2000 | 2500 | 2000 | 10 | 6150 | 45
FCS 250-12 | 250 | 2000 | 3000 | 1500 | 9 | 5400 | 45
FCS 250-13 | 250 | 2000 | 3000 | 2000 | 12 | 6150 | 52,5

Optionals and Customisation

• Materials: options for stainless steel (AISI304) for interior/exterior and accessories.
• Painting: standard epoxy primer + polyurethane coats; custom RAL available; special painting processes for corrosive environments with an accompanying painting report.
• Heating cabinet bottom: options include no bottom (floor-mounted), metal plate bottom, or insulated structure with rails for trolleys.
• Doors: standard swing doors (single/double); optionally guillotine (vertical sliding) or automatically operated wing doors; inspection windows and internal lights available.
• Air extraction and renewal systems: ON/OFF, timed/interlocked with cycle, interlocked with door locks; optional gas detectors when required by process.
• Moisture extraction systems and humidity probes for drying processes.
• Process control options: part temperature probes (active or monitoring), daily/weekly time switches, cycle timers, advanced processor thermoregulators, PLC-based control with HMI (Siemens S7-1200 with KTP HMI options). Functions include multi-zone control, recipe/cycle programming, user levels, data recording, alarms log, CSV export, batch management and IT interfacing (LAN or Profinet).

Caractéristiques / spécifications techniques

• Maximum process temperature: up to +250°C (FCS 250 series)
• Standard series: FCS 150 (up to 150°C) and FCS 250 (up to 250°C)
• Typical temperature tolerance (empty chamber): +/- 2°C (when specified conditions and flows are respected)
• Frame: welded carbon steel load-bearing frame
• Insulation: mineral wool, asbestos-free, designed to minimize thermal bridges
• Standard materials: painted carbon steel exterior; galvanised steel interior; stainless steel optional (AISI304)
• Control: digital temperature regulator (PID) standard; PLC + HMI optional for advanced logic and data logging
• Testing: temperature mapping performed by qualified laboratories using certified instruments
• Available configurations: batch (stand-alone) or continuous-cycle ovens with conveyors (metal mesh, chain, rollers) and multi-zone heating.
