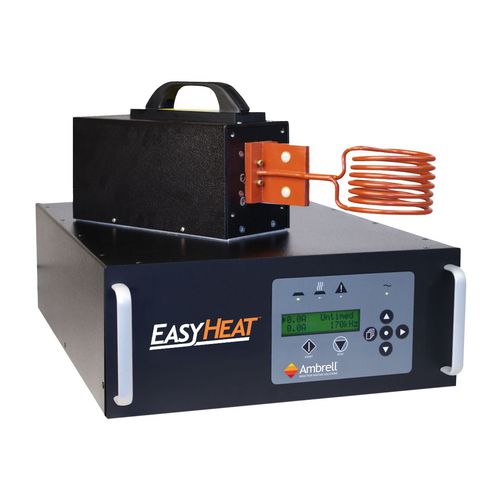

Parts assembly induction heater EASYHEAT 7590
for heat treatmentbrazing200-240 V

parts assembly induction heater
parts assembly induction heater
Add to favorites
Compare this product


Characteristics

Applications
for parts assembly
Use
for heat treatment, brazing
Voltage
200-240 V
Other characteristics
portable
Power

9,000 W

Frequency

Min.: 150 kHz

Max.: 400 kHz

Description

Line Voltage: 187-264/370-520, 3p The compact EASYHEAT induction heating Systems are a reliable solution for heating parts with a quick, clean source of heat. With a movable work head that can be located up to 3m (10’) from the power supply, it is idéal for repeatable, non-contact heating of parts. Equipped to operate over a broad frequency range , EASYHEAT is idéal for heating parts of many geometries and compositions with précisé power control within 25 W resolution. Avoid time-consuming changeovers with agile tuning for single-cycle and continuous heating operations. One System can supply deep, bulk heating for brazing and soldering for more shallow, concentrated heating for case-hardening for smaller parts. Flameless, non-contact induction heating minimizes energy waste by focusing energy only on the part and zone to be heated. Select and monitor power levels from the front panel LCD and sealed touch pad. Remote power control is available for employing contact inputs, analog inputs or optional serial data port. Easily control the length of the heating cycle with a built-in programmable digital timer. EASYHEAT is a water-cooled System, requiring connection to a heat exchanger or other mechanism for dissipating heat. Versatile • Efficient heating of many geometries • Repeatable, reliable heating with agile frequency tuning • Movable workhead; up to 3m (10’) • Remote serial operation or logging (optional) • Two 3-language display suites • Field-calibration capable. Easy-to-Use • Self-adjusting for accurate, repeatable results. • View set-point, output, frequency and timer. • Built-in timer, stop-watch. • Push-button RF control.
