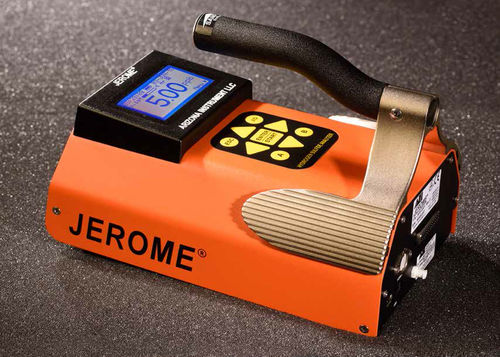

Hydrogen sulfide analyzer Jerome® J605

concentrationruggedwith data logger

Gold Film Hydrogen Sulfide Analyzer The newest H2S analyzer from Arizona Instrument LLC is the Jerome® J605 Hydrogen Sulfide Analyzer. The Jerome® J605 can read as low as 3ppb with an incredible resolution of 20ppt. The J605 is housed in a light and ergonomically designed case, setting a new precedent for low-level, portable monitors. The industry-proven, gold film sensor has been upgraded and improved from previous models, resulting in longer life expectancies. • - Ultra Sensitive: Detect hydrogen sulfide in air at levels as low as 3 parts per billion (3ppb). • - Proven: The Jerome’s gold film sensing technology has been validated in the laboratory and in the field for more than 35 years. • - Rugged: Its sturdy metal housing makes the J605 tough enough for nearly any environment. • - Reliable: With 18 hours of battery life per charge, the J605 is always ready when you need it. • - Smart: Features onboard data logging for up to 20,000 measurements, USB data transfer, and SCADA interface capabilities through 4-20ma output. Specifications - Detection Range: - 3 ppb (0.003 ppm) – 10 ppm Resolution: - 20 ppt (0.02 ppb) *range dependent Accuracy: - ±1 ppb at 5 ppb ±3 ppb at 50 ppb ±0.03 ppm at 0.5 ppm ±0.3 ppm at 5.0 ppm Response Time: - Survey Mode: 12-27 seconds Manual Mode: 12-27 seconds Auto Mode: 12-53 seconds Flow Rate: - 150 mL/min Result Units: - ppm, ppb Autosample Intervals: - 1, 2, 5, 10, 15, 30, 45, 60, 90 or 120 minutes Integrated Data Storage: - 20,000 test results; retains date, time and up to 80 locations Display: - 3.5” (9 cm) backlit LCD
