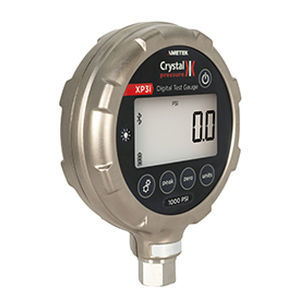

Relative pressure gauge XP3i

with LCD displayG 1/4M20 x 1,5

Overview
High-accuracy, rugged digital test gauge designed for field pressure measurement and calibration. Now equipped with USB-C and Bluetooth connectivity and compatible with a free mobile app and cloud software service for sharing and managing recorded data.

Key features

• Ultra rugged, intrinsically safe design
• Multiple accuracy options: 0.05% of reading, 0.02% of full scale, or 0.05% of full scale
• Ranges up to 15 000 psi
• Marine grade enclosure resistant to corrosion (meets MIL-STD 810)
• Accuracy stable over a wide temperature range (not affected from -20 to 50 °C)
• Replaces multiple single-range gauges (can replace 5 or more test gauges)
• Fast pressure safety valve (PSV) mode
• Easy operation with simplified user interface – minimal menus
• Includes calibration reminders and alerts

Bluetooth and connectivity benefits

• Bluetooth allows connection in hazardous environments while retaining intrinsically safe ratings
• Enables mounting the gauge in hard-to-reach locations and connecting from a safe area
• Allows remote connection from climate-controlled areas to avoid inclement weather exposure
• Eliminates common cable/driver issues by enabling wireless communication

DataLoggerXP (optional upgrade)

• Records over 200 million data points
• Supports over a year of continuous recording time (depending on configuration)
• Start and stop logging runs from the gauge or from the mobile app
• Download recorded data via USB or wirelessly via Bluetooth and the mobile app

CrystalControlWeb cloud service (free)

• Upload stored data from a computer or from files downloaded via the mobile app
• Share stored data within an organization and grant user access via license keys
• Graph stored data with configurable graph details (line color, axis limits, run/test names)
• Configure XP3i settings remotely and export data to spreadsheets or tamper-proof PDF files

Options and notable variants

• Dual Line Display (-DD) — adds a second display line for peaks, average, leak rate, or logging details
• DataLoggerXP (-DL) — enables extensive onboard logging capabilities
• -S2 — 0.02% of full scale accuracy option
• -S5 — 0.05% of full scale accuracy option
• -BSP — G 1/4 B parallel pressure fitting option
• -M20 — M20 x 1.5 male CPF adapter option

Accessories

• Magnetic hanging strap for XP3i and related models
• XP3i protective boot (intrinsically safe rated) to increase shock resistance
• Hard carrying cases (egg crate / die cut foam) with specified external/internal dimensions
• USB C to USB A cable (note: do not use USB interface within a hazardous atmosphere)
• USB wall-mount adapter (automatic power source switching on power failure)

Software & tools

• CrystalControlWeb — free cloud service for data management, graphing and reporting
• CrystalConnect — free mobile application for Bluetooth connection, live view, logging control and data download
• UnitCalc — free pressure unit calculator and conversion tool

Certifications / approvals

• CE
• CSA
• IEC
• IECEx
• ATEX

Technical specifications

• Model: XP3i
• Accuracy options: 0.05% of reading; 0.02% of full scale; 0.05% of full scale
• Pressure range: up to 15 000 psi (model-dependent)
• Enclosure: marine grade, corrosion-resistant (MIL-STD 810)
• Operating temperature performance: accuracy not affected from -20 °C to 50 °C
• Connectivity: USB-C and Bluetooth (with associated mobile app support)
• Optional logging: DataLoggerXP capable of storing >200 million measurements
• Display options: single line standard; Dual Line Display (-DD) optional
• Fittings/adapters available: G 1/4 B parallel (-BSP); M20 x 1.5 male (-M20); CPF adapters available
• Safety/operation modes: Fast pressure safety valve (PSV) mode; intrinsically safe rating for hazardous locations (model/configuration dependent)
• Accessories: protective boot, carrying cases, magnetic strap, USB cable and wall adapter
• Documentation available: datasheets and manuals (product-specific PDFs)
