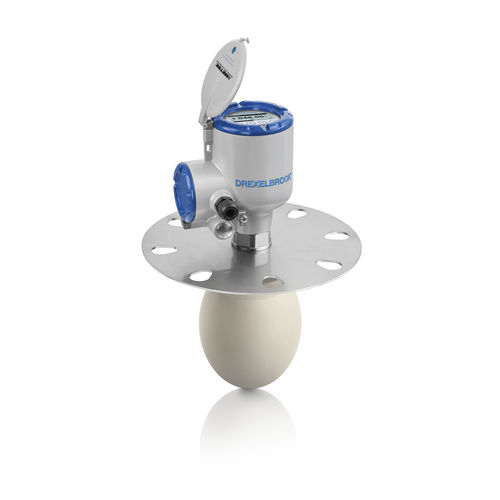

FMCW radar level transmitter / for liquids / compact / high-precision
DR5400

{{requestButtons}}

Characteristics

  • Technology:

    FMCW radar

  • Medium:

    for liquids

  • Other characteristics:

    compact, high-precision, with digital display, IP66, 4-20 mA, 2-wire, ATEX, IECEx, flange-mount, loop-powered, HART, IP68, PROFIBUS, NAMUR

  • Applications:

    for storage tanks, for harsh environments, for the pharmaceutical industry, for corrosive environments, for industrial applications, for hazardous areas

  • Level range:

    Max.: 100 m (328'01")

    Min.: 0 m (0'00")

  • Process pressure:

    Max.: 16 bar (232.06 psi)

    Min.: 0 bar (0 psi)

  • Process temperature:

    130 °C (266 °F)

Description

DR5400, FMCW 24 GHz open air radar is a market entry level transmitter for liquids in basic process applications. This model has proven PP Drop antenna design which is insensitive to condensation.

To ensure sharper resolution and higher accuracy this radar level transmitter operates over a 2 GHz bandwidth, 24-26 GHz. The higher signal dynamics of the DR5400 allow the accurate detection of even the smallest level changes.

The DR5400 is a two-wire radar level measurement device with HART 7 capability, clear navigation display and touch screen user interface, which allows for easy configuration and set up.
