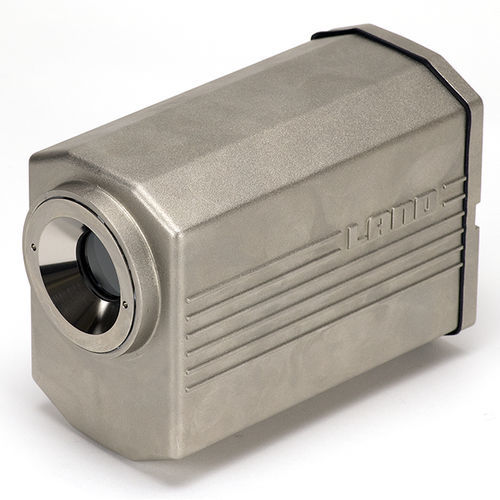

Infrared thermometer FLT5B

without display°C°F

The FLT5B is a standalone thermometer offering precision measurement of the surface temperature of glass float lines, ensuring consistently high product quality throughout the process. Offering excellent precision and long-term stability, the FLT5B’s extensive measurement range removes the need to use a range of temperature monitoring instruments on the float line, simplifying system integration and operation. Accurate temperature measurement is vital in ensuring uniformity across the entire width of the glass. The FLT5B measures glass surface temperature in the range 250 °C to 1300 °C / 482 °F to 2372 °F, with excellent precision and long-term stability. High measurement precision is achieved using AMETEK Land’s leading-edge infrared technology, which gives a highly accurate, non-contact measurement with 1m fixed-focus 50:1 optical field of view. Custom-designed for use in float lines in the glass production, the FLT5B is suitable for use through the process: from the initial floating and forming in the bath, to the cooling and annealing sections in the tin bath and annealing lehr. WIDE MEASUREMENT RANGE Providing a spectral response from 4.8 to 5.2µm, the FLT5B measures from 250 to 1300 °C / 482 to 2372 °F. This means the thermometer can be used at more points on the line, reducing the number of different types of device needed. ACCURATE RESULTS With low ‘penetration’ into the glass, the thermometer’s 50:1 optics and fixed 1m focus ensure 98% energy from the 20mm target spot. This gives precise, stable results for surface temperature, even in conditions of high atmospheric humidity.
