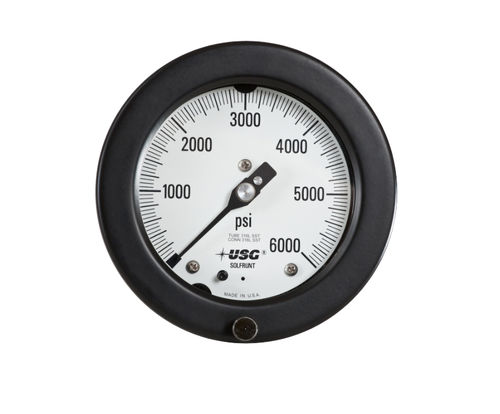

Dial pressure gauge SOLFRUNT 1903absoluterelativepanel-mount
Add to favorites
Compare this product
Characteristics
- Display
- dial
- Pressure type
- absolute, relative
- Mounting
- panel-mount, back mount
- Process connection
- NPT 1/4, NPT 1/2
- Material
- stainless steel, brass, aluminum
- Technology
- Bourdon tube
- Protection level
- corrosion-resistant, rugged
- Applications
- process, for vacuum
- Pressure
Max.: 51,715.08 mm/Hg
Min.: -761 mm/Hg
- Precision
0.5 %
- Dial diameter
4.5 in, 6 in
Description
The SOLFRUNT 1903 panel mount process gauge has brass and phoshor bronze wetted parts, and comes in gauge sizes of 4-1/2" and 6” for applications needing panel mounting. The Model 1903 pressure gauges have a cast aluminum solid front flange case with a lower-back mount. ¼” or ½” NPT process connections are available.
Model 1903 process gauge is supplied in many different ranges including vacuum, compound, and pressure ranges from 30" Hg vacuum through 1000 psi. Dials are available in psi gauge or metric versions.
Ranges: - Vacuum - 30 to 0 "Hg VAC (counterclockwise rotation)
