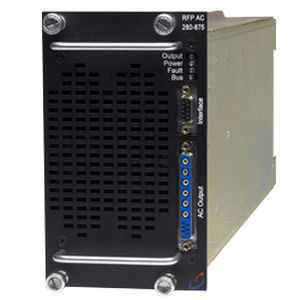

Digital power module RFP AC

DCAC

Overview
ReFlex Power™ is a high density, modular programmable power system providing DC, AC and electronic load assets all under control of a single controller. It provides a reconfigurable, flexible platform ideal for ATE and production test environments where RFP™ can provide programmable stimulus and bias power as well as programmable loads for the device(s) under test. The EIA 4U RFP™ mainframe can hold up to 12 single-slot modules or combinations of single, dual and triple slot wide modules. The mainframe can support up to 6 kW of output power. Up to 8 mainframes (potentially up to 95 modules) can be controlled via a single controller using a high speed proprietary bus protocol. The RFP™ controller communicates to the host via an Ethernet LAN connection designed to be compliant with the LAN Extension for Instrumentation standard. RFP™ system modules can be combined via the controller to create “virtual assets” with the voltage/current combinations required for a particular test regime, reducing logistical complexity and total cost of ownership.

Available power modules include

• Single slot, 330 Watt programmable DC supplies
  • 16 V, 20.6 A
  • 65 V, 5.1 A
• Dual slot, 1 kW programmable DC supplies
  • 33 V, 30 A
  • 50 V, 20 A
  • 50 V, 25 A
  • 120 V, 8.3 A
  • 450 V, 2.3 A
• Triple slot, 875 VA, single phase, programmable AC supply
  • Dual range: 280 V(rms), 3.5 A(rms)
  • Dual range: 140 V(rms), 7 A(rms)
• Triple slot, 500 V, programmable electronic DC loads
  • 15 A, 375 W
  • 30 A, 750 W

Key Features

• High power density (2 VA/cubic inch)
• Single or multi-phase output
• Parallel operation
• 4.8 crest factor
• Digital control loop technology
• ≥0.95 Power Factor Correction (PFC)
• Brown-out simulation
• AC 875 VA modules
• Operating frequency range: 45 to 5,000 Hz (dependent on module)
• Universal AC/DC input via mainframe
• User configurable and simple integration

Specification summary
Model: RFP AC Power
Voltage: 140 - 280 V
Current: 3.5 - 7 A
Power: 875 VA
Overview: AC Output ReFlex Power Module

Model number descriptions and options (selection extracted from page)
Mainframe
RFP-M0000-001-0000 — 12 Slot Mainframe
RFP-M0000-001-1E00 — 12 Slot Mainframe with 90 Degree AC Input Connector
RFP-M0000-REC-0000 — 12 Slot Recessed Mainframe
RFP-M0000-REC-1E00 — 12 Slot Recessed Mainframe with 90 Degree AC Input Connector
Mainframe Options
5380059-01 — Chassis Slot Blanking Module
5380317-01 — 2 meter unterminated AC line cord with mainframe connector mate
5380554-01 — 2 meter unterminated AC line cord with mainframe connector mate for single-phase 125V, 20A connection
5380555-01 — 2 meter unterminated AC line cord with mainframe connector mate for single-phase 250V, 20A connection
5380556-01 — 2 meter unterminated AC line cord with mainframe connector mate for three-phase 120V/208V, 30A connection
5380318-01 — AC Input mainframe connector mate
5380054-01 — Chassis Interconnect Cable 36 Inches
5380054-02 — Chassis Interconnect Cable 97 Inches
5380054-03 — Chassis Interconnect Cable 135 Inches
Controller
RFP-C1LAN-000-0000 — Standard controller
RFP-C1LAN-000-1F00 — Controller with Extended Operating Temp
Controller Options
5380441-01 — Controller 15-pin Dsub 9 foot cable
5380441-03 — Controller 15-pin Dsub 9 foot cable (90 degree bend)
5380509-01 — Controller interlock shorting connector
5380269-01 — Connector Mating Kit
DC Modules (selection)
16 V
RFP-D1016-021-1G00 — 1 Slot, 16 Vdc, 20.6 A, 330 W with Disconnect/Polarity Relay (1G)
RFP-D1016-021-2D00 — 1 Slot, 16 Vdc, 20.6 A, 330 W + Extended Oper. Temp.
RFP-D1016-021-1G1A — 1 Slot + Calibration Certificate
65 V
RFP-D1065-5A1-1G00 — 1 Slot, 65 Vdc, 5.1 A, 330 W with Disconnect/Polarity Relay (1G)
33 V (2-slot, 1 kW)
RFP-D2033-030-1G00 — 2 Slots, 33 Vdc, 30 A, 1 kW with Disconnect/Polarity Relay (1G)
50 V (2-slot, 1 kW)
RFP-D2050-020-1G00 — 2 Slots, 50 Vdc, 20 A, 1 kW with Disconnect/Polarity Relay (1G)
RFP-D2050-025-1G00 — 2 Slots, 50 Vdc, 25 A, 1 kW with Disconnect/Polarity Relay (1G)
120 V (2-slot, 1 kW)
RFP-D2120-8A3-1G00 — 2 Slots, 120 Vdc, 8.3 A, 1 kW with Disconnect/Polarity Relay (1G)
450 V (2-slot, 1 kW)
RFP-D2450-2A3-1G00 — 2 Slots, 450 Vdc, 2.3 A, 1 kW with Disconnect/Polarity Relay (1G)
DC Module Options (cables & kits)
5380444-01 — 16 Vdc 9 foot output cable
5380444-03 — 16 Vdc 9 foot output cable - 90 degree bend
5380445-01 — 65 Vdc 9 foot output cable
5380446-01 — 33 Vdc/50 Vdc 9 foot output cable
5380453-01 — 120 Vdc 9 foot output cable
5380447-01 — 450 Vdc 9 foot output cable
5380443-01 — Module 9-pin D-sub 9 foot cable
5380508-01 — Module interlock shorting connector
5380270-01 — 16 Vdc Connector Mating Kit
5380270-02 — 65 Vdc Connector Mating Kit
5380271-01 — 33 Vdc/50 Vdc Connector Mating Kit
5380271-03 — 120 Vdc Connector Mating Kit
5380271-02 — 450 Vdc Connector Mating Kit
AC Modules
RFP-A301K-875-1G00 — 3 Slots, 875 VA, 45-1.2 kHz with Disconnect Relay (1G)
RFP-A301K-875-2D00 — 3 Slots, 875 VA, 45-1.2 kHz + Extended Oper. Temp.
RFP-A305K-875-1G00 — 3 Slots, 875 VA, 45-5 kHz with Disconnect Relay (1G)
RFP-A305K-875-2D00 — 3 Slots, 875 VA, 45-5 kHz + Extended Oper. Temp.
AC Module Options
5380450-01 — AC 9 foot output cable
5380450-03 — AC 9 foot output cable - 90 degree bend
5380272-01 — AC Output Connector Mating Kit
Load Modules
RFP-L3500-375-1G00 — 3 Slots, 375 W, 500 Vdc, 15 A with Disconnect/Polarity Relay (1G)
RFP-L3500-750-1G00 — 3 Slots, 750 W, 500 Vdc, 30 A with Disconnect/Polarity Relay (1G)
Load Module Options
5380452-01 — DC Loads 9 foot input cable
5380273-01 — DC Load Connector Mating Kit
