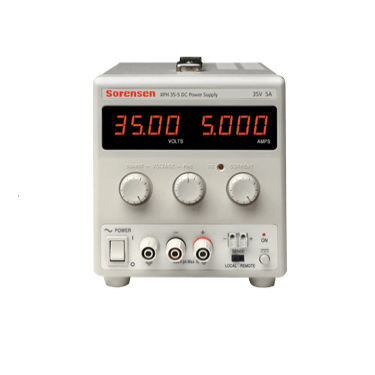

Benchtop power supply XPH series

DCdual-outputsingle-output

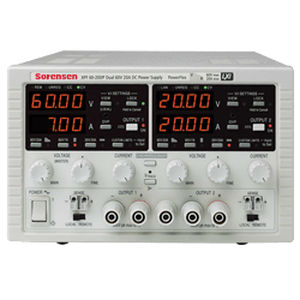

The Sorensen XPH Series benchtop DC power supply provides 175 to 420 watts of DC power. The XPH is a compact, high-performance low-cost power supply suited for benchtop applications. The Sorensen XPH Series lab power supply uses combined switch–mode pre–regulation with linear post-regulation to provide performance comparable with an all-linear design. The XPH benchtop power supply features excellent line and load regulation with low noise and good transient response. The XPH Series is available in a single, dual, and triple output for benchtop use. The Sorensen XPH dual output models have two independent and isolated outputs with their own on–off switch. The outputs can be wired in either series or parallel to provide higher voltage and higher current output. All outputs are intrinsically short-circuiting proof and are protected against external voltages and reverse currents. The XPH triple output model has the same features as the dual output model with an additional switchable fixed output of 3.3V and 5V. Key Features Excellent line⁄load regulation Coarse and fine voltage controls Constant voltage or constant current operation with automatic crossover and mode indication Individual ON⁄Off switch per output (not including fixed output) Switchable 3.3V⁄5V output on triple output model
