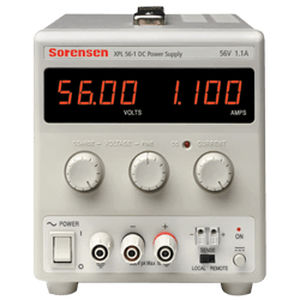

Benchtop power supply XPL

AC/DCdual-outputsingle-output

Overview
The Sorensen XPL Series delivers compact, programmable linear DC power for benchtop and laboratory applications. Available in power ratings from 30 W to 125 W, the XPL provides flexible voltage and current ranges for development, testing and repair tasks.

Key specifications

• Model: Sorensen XPL Series
• Voltage range: 18 V – 56 V
• Current range: 1 A – 3 A
• Power range: 30 W – 125 W
• Form factor: compact benchtop

Performance and features
The XPL Series uses linear regulation to deliver low noise, excellent line and load regulation and good transient response. Its performance characteristics make it suitable for precision bench testing and lab use. The series is offered in single-, dual- and triple-output configurations to match different application needs.

Outputs

• Dual output model: Two independent, isolated outputs, each 0–30 V and 0–2 A, each with its own on/off switch. Outputs can be wired in series (up to 60 V) or parallel (up to 4 A). All outputs are intrinsically short-circuit proof and protected against external voltages and reverse currents.
• Triple output model: Same as the dual model with an additional switchable fixed output (3.3 V and 5 V options).

Options

• HV (Input Voltage Option): 230 VAC input factory set

Technical specifications

• Model: Sorensen XPL Series
• Voltage range: 18 V – 56 V
• Current range: 1 A – 3 A
• Power range: 30 W – 125 W
• Regulation: Linear regulation
• Outputs: single; dual (2 isolated outputs 0–30 V / 0–2 A); triple (dual plus switchable 3.3 V and 5 V)
• Dual output wiring: series up to 60 V; parallel up to 4 A
• Protections: intrinsically short-circuit proof; protected against external voltages and reverse currents
• Form factor: compact benchtop
• Option: HV input (230 VAC factory set)
