Overview

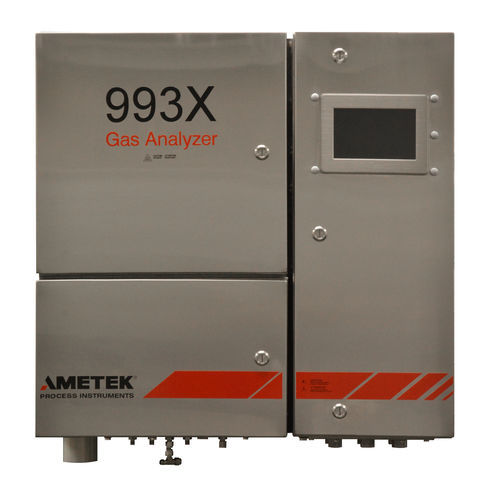

The 993X gas analyzer uses proven AMETEK analytical technology in a redesigned platform to provide a multi-component measurement solution. The optical bench supports continuous measurement across ultraviolet (UV) and infrared (IR) wavelengths, with hydrogen (H2) monitored via a Thermal Conductivity Detector (TCD). An integrated sample conditioning system reduces the need for external analytical hardware.

Operational advantages
The analyzer offers multiple heater options (available up to 165°C) for applications with high dew points, reducing or eliminating the need for coolers. A large touchscreen provides on-site access to analyzer data and controls without a laptop. The unit is designed for outdoor installation and operates without consumables or reagents.

Typical measurable components

• Hydrogen sulfide (H2S)
• Sulfur dioxide (SO2)
• Carbonyl sulfide (COS)
• Carbon disulfide (CS2)
• Chlorine (Cl2)
• Ammonia (NH3)
• Carbon dioxide (CO2)
• Carbon monoxide (CO)

Stable measurements
The 993X uses a dual-beam optical configuration with a reference detector to reduce drift. Hollow cathode lamps provide long-term stability across temperature variations, minimizing span drift.

Analytical flexibility
Configurations include multiple hollow cathode lamps and a rotating filter wheel to measure several UV-absorbing components simultaneously. For single-component applications a fixed bench (no filter wheel) option reduces maintenance and noise.

Features

• Simultaneous analysis of up to eight components
• Optical bench: up to five UV components, two IR components, plus H2 by TCD
• IP66 enclosure suitable for outdoor installation without shelter
• No ambient temperature control required for many environments
• Integrated sample conditioning system
• Direct H2S measurement: no scrubbing, tape cartridges or flames
• Certifications available for hazardous locations (e.g., Class I Division 2, ATEX/IECEx Zone 2) for some variants

Technical specifications

• Model: 993X Gas Analyzer
• Simultaneous analysis: up to 8 components
• UV capacity: up to 5 components
• IR capacity: up to 2 components
• H2 measurement: Thermal Conductivity Detector (TCD)
• Integrated sample conditioning system (built-in)
• Maximum heater option: up to 165°C
• Optical configuration: dual-beam; hollow cathode lamps; configurable with rotating filter wheel or fixed bench
• Enclosure rating: IP66
• Designed for outdoor installation; no consumables/reagents required
• Hazardous location certifications available: ATEX, IECEx, cETLus (variants dependent)
• User interface: large touchscreen for local operation
