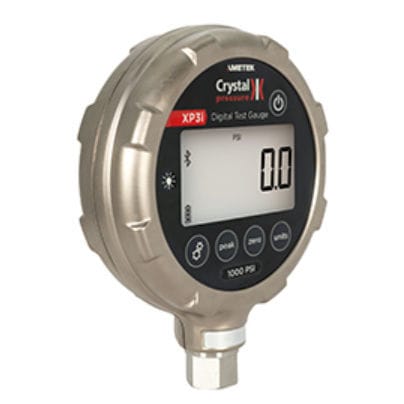

Pressure gauge with LCD display XP3i
BluetoothUSBintrinsically safe

Pressure gauge with LCD display - XP3i - AMETEK - Bluetooth / USB / intrinsically safe
Pressure gauge with LCD display - XP3i - AMETEK - Bluetooth / USB / intrinsically safe
Add to favorites
Compare this product

Characteristics

Display
with LCD display
Communication
USB, Bluetooth
Protection level
intrinsically safe
Applications
test
Other characteristics
high-accuracy, high-pressure, data logging, wireless
Pressure

15,000 psi

Precision

0.02 %, 0.05 %

Process temperature

Max.: 50 °C
(122 °F)

Min.: -20 °C
(-4 °F)

Description

Overview
  • High accuracy digital test gauge designed for ultra-rugged field use and intrinsically safe environments.
  • Available accuracy options: 0.05% of reading, 0.02% of full scale, or 0.05% of full scale.
  • Ranges up to 15 000 psi, enabling a single XP3i to cover wide pressure ranges and replace multiple single-range gauges.
  • Marine grade enclosure with corrosion resistance meeting MIL-STD-810.
  • Accuracy maintained across a wide temperature range (-20 to 50 °C).
  • Easy-to-use interface: designed for simple operation with minimal menuing.
  • Includes calibration reminders and alerts.


Key Features
  • USB-C and Bluetooth connectivity for communications and data transfer.
  • Intrinsically safe ratings retained while connecting via Bluetooth.
  • Fast Pressure Safety Valve (PSV) mode.
  • Capable of replacing multiple “of scale” gauges thanks to broad ranges and high accuracy.


Bluetooth — benefits
  • Connect in hazardous environments while retaining intrinsically safe ratings.
  • Mount the XP3i in hard-to-reach locations and connect from a safe area.
  • Connect remotely from offices or vehicles to avoid inclement weather exposure.
  • Avoid issues with communication cables, drivers, or damaged cables by using wireless connectivity.


Optional DataLoggerXP upgrade
  • Record over 200 million data points; supports over a year of continuous recording.
  • Start and stop logging runs from the gauge or from a phone via the mobile app.
  • Download logged data via USB or wirelessly via Bluetooth and mobile app.


CrystalControlWeb (cloud service) — features
  • Upload and store logged data in the cloud and share within an organization.
  • Graph stored data with customizable graph options (line color, axis min/max, run/test names).
  • Configure XP3i settings remotely.
  • Export data to spreadsheets or secure, tamper-proof PDF reports.
  • Grant user access to organization members via license keys.


Options
  • -DD: Dual Line Display — adds a second display line (peaks, average, leak rate or data logging details when upgraded to -DL).
  • -DL: DataLoggerXP — enables onboard data logging features described above.
  • -S2: 0.02% of full scale accuracy option.
  • -S5: 0.05% of full scale accuracy option.
  • -BSP: G ¼ B Parallel Pressure Fitting.
  • -M20: M20 x 1.5 Male CPF Adapter.


Accessories (examples)
  • 5203: Magnetic Hanging Strap (for XP3i, XP2i, m1, HPC40/50 series).
  • 7095: XP3i Protective Boot — increases shock resistance; intrinsically safe rated.
  • 3009: Hard Carrying Case — egg crate foam. External dimensions: 14 x 11 x 3.2 inches.
  • 2888: Weatherproof Hard Carrying Case — die cut foam. Internal dimensions: 16.8 × 11.2 × 6.1 inches.
  • 6885: USB Cable USB-C to USB-A (note: do not use USB interface within a hazardous atmosphere).
  • 7190: USB Universal Adapter, Wall Mount, USB-A (provides external power; XP3i will switch from batteries to wall adapter as needed).


Certifications / Approvals
  • CE
  • CSA
  • IEC
  • IECEx
  • ATEX


Characteristics / Spécifications techniques
  • Model / series: XP3i
  • Accuracy options: 0.05% of reading; 0.02% of full scale; 0.05% of full scale.
  • Pressure range: up to 15,000 psi (model-dependent).
  • Data logger (optional -DL): stores over 200,000,000 measurements; supports >1 year continuous recording (model/option dependent).
  • Connections: USB-C (wired), Bluetooth (wireless).
  • Enclosure: marine grade; corrosion resistant; meets MIL-STD-810 environmental criteria.
  • Operating temperature: specified stable accuracy from -20 °C to 50 °C.
  • Safety/operational modes: Fast Pressure Safety Valve (PSV) mode; intrinsically safe ratings for hazardous areas.
  • Software: CrystalConnect mobile app (Bluetooth), CrystalControlWeb cloud service (data upload, graphing, reporting), UnitCalc unit conversion utility.
  • Documentation available: brochure, datasheets (psi / bar / kPa), product comparison, manuals (including flange-mount and programming manual).
