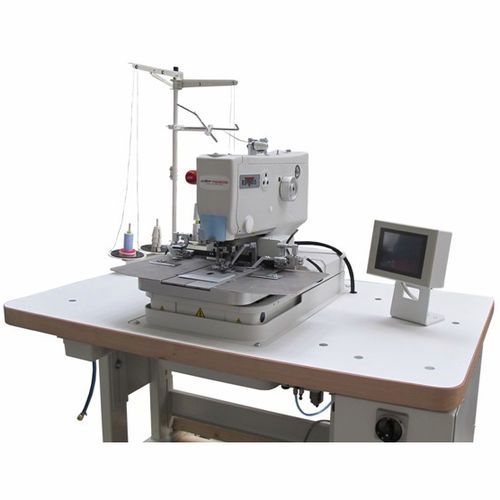

The ES 505 Indexer machine is specially designed for sewing multiple buttonholes on jacket sleeves and jeans fly fronts at required distances between each buttonhole.The indexer unit ensures that buttonholes are sewn automatically one after another at required lengths and distances that are set by the operator on the touch screen display. The new angle model allows sewing of slanted buttonholes with angle up to 45 degrees.Structural design of the indexer unit, placed behind the clamp feet, ensures easy access to the looper area if needed. The indexer unit does not need to be disassembled when taking off the clamp plates for easy maintenance.
Main Features
Currently the fastest machine available, running at 2,700 spm
Unbeatable sewing speed adjustable from 1,500 spm to 2,700 spm directly from the touch screen display. Different sewing speed can be programmed at the start/stop position, around the eye and in the cross bar finish to ensure excellent sewing quality even on difficult materials.
Modular design of the sewing head with integrated sewing motor
The new concept of the sewing head provides the operator with larger handling space in the sewing area. The new, stronger main drive increases machine performance and is integrated in the sewing head.
Patented balancing and sewing drive mechanism
Developed to increase the machine performance, lifetime and decrease the machine sewing head vibration.
Incorporated round LED lights
Incorporated LED sewing lights around the cutting block eliminates darker spots in the sewing area and provides optimum light conditions while working on the machine.
