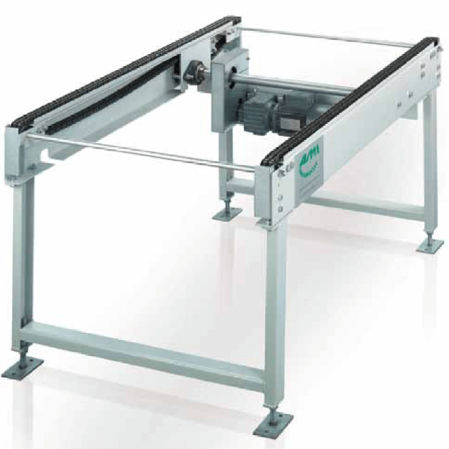

Chain conveyor KF2

horizontal

Chain conveyor KF2 The 2-track KF2 roller conveyor is used for the horizontal transport of load units. The load carriers are moved using two power-operated chain tracks. Lateral transport of long conveyed materials is also possible. Depending on the transported weight and characteristics of the load carrier, the chain conveyor can also be used as a 3, 4 or 5 track chain conveyor version. The 2-track chain conveyor is available in a variety of material versions, and offers an extensive range of proven system accessories. TECHNICAL DATA Line load (max.) 160 kg/m Ambient temperature -0 to +40 °C Installation area dry operation in enclosed facilities Track width 600 - 1800 mm Number of tracks 2 - 6 Conveyor chain Duplex chain 12B-2 Length 700 - 12000 mm Drive power 0,37 - 2,2 kW; Connection for 220/240 - 380/415 V, 50 Hz. Protective class IP 54 Speed (max.) 0,5 m/s Frame C-profile frame 65/180 mm, powder-coated steel ** Accessories Fixed and adjustable lateral guides End stop impact protection supports Feed centring devices Step plates / bridges Oil pans Sensor brackets Sensors Drive cams Rubberised chain Protective housing
