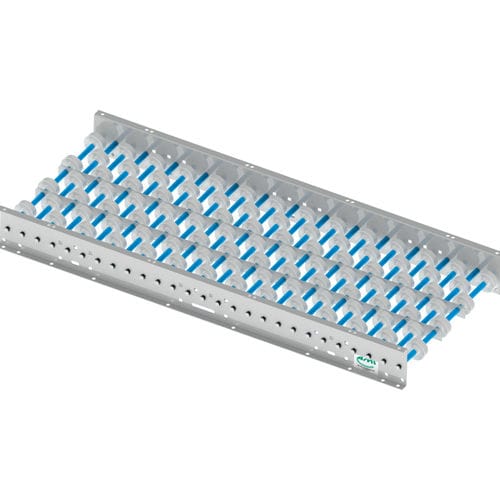

Skate wheel conveyor LRO48-100
gravityfor assembly

skate wheel conveyor
skate wheel conveyor
Add to favorites
Compare this product


Characteristics

Technology
skate wheel
Other characteristics
gravity, for assembly
Maximum load

75 kg, 100 kg
(165.347 lb, 220.462 lb)

Description

Skatewheel conveyor LRO48-100 Economical skatewheel conveyor LRO 48-100 is used for gravity-driven transport of small cargo via a slope. The LRO 48-100 skatewheel conveyor is primarily used in manual assembly. TECHNICAL DATA Carrying capacity (max.) PVC-Skatewheel 75 kg/m*, Steel-Skatewheel 100 kg/m* Decline 2-5%, depending on characteristics and weight Ambient temperature 0 to +50 °C Width A 300 - 450 mm (in 50 mm increments) Roller pitch A 37,5 / 50 mm Width B 300 - 800 mm (in 50 mm increments) Roller pitch B 62,5 / 75 / 100 / 125 / 150 / 200 mm Length a multiple of the roller pitch (min. 2x) up to max. 3.000 mm Roller type Smooth-running Skatewheel with bearing Roller diameter 48 mm Roller material Galvanised steel, PVC Rahmen U-Profilrahmen 20/60/20x2 mm, Stahl verzinkt**, Profile height 100 mm, the top edge of the rollers is 31 mm under the U-profile frame *Surface load: Reference value at width NB 300, span 1.5 m and roller pitch 62.5 mm **others on request
