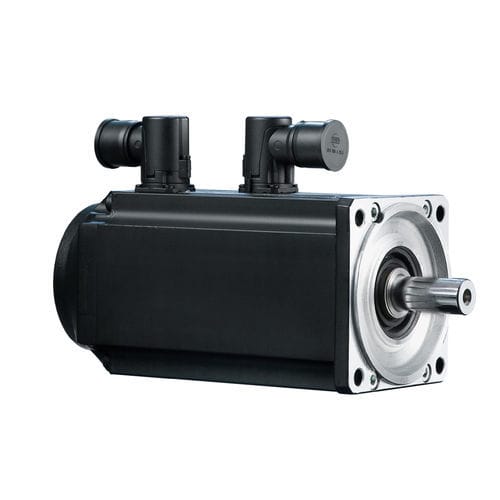

Brushless servomotor DT 5 series

ACcompactIP65

• Positioning and actuating drive for drive tasks with or without transmission • For intermittent operations • Control drive for continuous operation Connection cable: Nominal cross-section of copper conductor 1.5 mm2 Power connector in size 1 • High standstill torques • High torques and power density • Exceptional dynamism • Extremely low cogging torques during moment pulsations Resilient The high-pole servo motors of the DT series are designed for high torques and have increased intrinsic moments of inertia. This means they can also accelerate larger loads highly dynamically without a gearbox as a direct drive, thereby increasing the productivity of the machine. Protected The magnets in the rotor are inserted and fixed by means of a plastic overmoulding. This additionally protects the magnets from dust, gases and moisture – for permanently stable magnetic values. Shortened The high-torque motors of the DT series are also available in compact form: the DTK design is shorter, so it fits where space is limited. The DTK can drive linear axes, for example.
