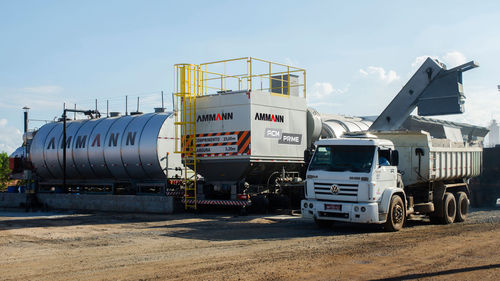

Mobile asphalt plant ACM PRIME 2.0

continuoustransportable

Overview
The ACM Prime series are highly mobile versions of Ammann continuous asphalt mixing plants. They combine proven core components with the as1 Control System for automated process control and repeatable mix quality. A controllable outlet gate enables adjustment of filling height and mixing time to match recipe and output.

Key features

• Continuous asphalt mixing designed for high mobility and compact transport footprint.
• Production capacity: 100–210 t/h depending on model (ACM Prime 100, 140, 210).
• Maximum recycling rate: up to 40% RAP.
• Plant type: mobile, for frequent relocation and quick setup.
• as1 Control System for automation, process control and consistent mix quality.
• Controllable outlet gate to adjust filling height and mixing time according to recipe and output.

Highlights & benefits

• High portability and compact design for on-site asphalt production.
• Flexible mobility features to support varying jobsite locations and transport constraints.
• Consistent quality through intelligent automation and proven mechanical components.
• Energy-efficient operation with support for alternative fuels, warm-mix technologies and low-emission burners.

Technical specifications

• Brand: Ammann
• Product family: ACM Prime continuous asphalt mixing plants
• Models: ACM Prime 100, ACM Prime 140, ACM Prime 210
• Production capacity: 100 t/h (ACM Prime 100), 140 t/h (ACM Prime 140), 210 t/h (ACM Prime 210)
• Maximum recycling (RAP) rate: up to 40%
• Control system: as1 Control System (automated process control)
• Controllable outlet gate: adjustable filling height and mixing time
• Dryer / burner examples: T-1650 / 7 MW (100), T-1860 / 10 MW (140), T-2080 / 14 MW (210)
• Filter examples (surface): AFA 22 PRI [265 m2] (100), AFA 30 PRI [330 m2] (140), AFA 44 PRI [518 m2] (210)
• Mixer types / batch indicators: AMIX 0.09 (100), AMIX 1.125 (140), AMIX 1.20 (210)
• Ready-mix silo capacity: 27 t (100), 50 t (140 & 210)

Additional technology & sustainability notes
Ammann integrates intelligent automation and digital monitoring for predictive maintenance and real-time insights. Burners support alternative fuels and low-emission operation. Modular add-ons enable high RAP recycling, warm-mix asphalt options, noise reduction and advanced emission control to optimise performance and sustainability.
