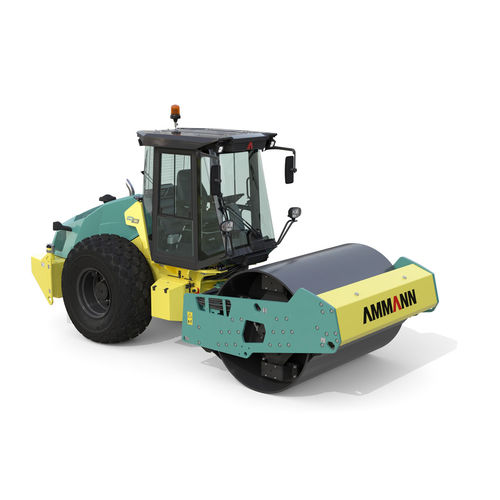

Single-cylinder road roller ARS 130

The ARS 130 Soil Compactor features a cab design that provides operators with 360° visibility and an intuitive, conveniently located control display. The compact frame improves manoeuvrability and flexibility, making the machines exceptionally productive. The ARS 130 also is known for its visibility, fuel efficiency and climbing ability. The availability of a variable range of frequencies make the machine a perfect fit for many applications and varied materials. The proprietary ACEforce Intelligent Compaction system, which offers absolute compaction measurement and optional documentation, improves efficiency and quality. The ARS 130 also features ECOdrop, which reduces ownership costs through an increase in efficiency, a decrease in fuel consumption and a reduction in required fluids for hydraulics and the vibratory drum system. A = MACHINE LENGTH - 5900 mm A1 = MACHINE LENGTH (BLADE) - 6610 mm B = WHEELBASE - 2990 mm C = MACHINE HEIGHT - 2970 mm D = MACHINE HEIGHT (OPERATOR SEAT) - 2200 mm E = DRUM WIDTH - 2130 mm F = MACHINE WIDTH - 2260 mm F1 = MACHINE WIDTH (BLADE) - 2440 mm G = CURB CLEARANCE - 400 mm H = GROUND CLEARANCE - 430 mm I = DRUM DIAMETER - 1500 mm /*1694 mm J = DRUM THICKNESS - 25 mm /*20 mm
