RF connector MM, SM

DIN

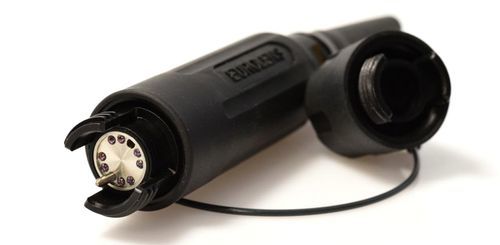

Features Two and four channel plug Suitable for use in harsh environment Lens technology Higher insertion loss Plug with 2-gear screw thread Night marker Good stress relief Hermaphroditical connection ("connector-connector" or "connector-bulkhead" possible) Less mud sensitive (when open) Especially suitable for frequent connectorization Easy to terminate IP 67 Compatible to military norm. Connectors MIL-DTL-83526/20 Bulkheads MIL-DTL-83526/21 Operating temperature: -55°C - +85°C Connection cycle: 3000 Stress relief: 1500N* Use Military Video and TV transmissions Industry *depending of cable The EUROLENS was developed for harsh environment and is very qualified for multiple connectorization. The surface is protected and therefore very insensitive in dirty environment. The screw thread and the optimal stress relief offer best connectivity even in harsh environment. The hermaphroditical connector cares for an optimal flexibility in the field. The expanded beam technology inside offers an optimal transmission with minimal loss effect. Compared to standard lens connectors, the EUROLENS is easy to assemble and can be assembled independently from the cable manufacturer. Therefore customers are free in choosing the appropriate supplier.
