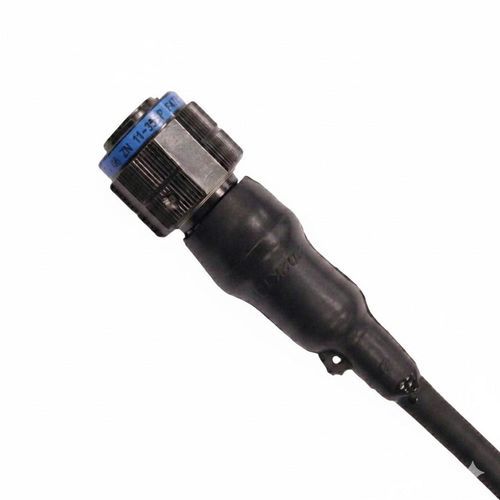

Industrial pipe assembly H-PACcustom
Add to favorites
Compare this product
Characteristics
- Applications
- industrial
- Other characteristics
- custom
Description
Product overview
Factory-tested, ready-to-install plug-to-plug cordsets for harsh environments. Amphenol Socapex offers IPC/WHMA-A-620 Class 3 H-PAC cordsets with TV F472 plugs featuring integrated backshells. Designed for prototyping and short lead times, these assemblies provide configurable connectivity for demanding sectors such as ground vehicles, remote weapon turrets, battlefield communications, military avionics and industrial systems.
Key features
Applications
Technical information
Amphenol Socapex H-PAC cordsets are IPC/WHMA-A-620 Class 3 plug-to-plug assemblies using TV F472 plugs available in all layouts and five finishes. They are factory tested and supplied ready for prototyping. Options include EMI shielding, coding, various wire choices, end caps and customized lengths up to 10 meters. Cordsets are available with straight or 90° plug configurations. Receptacle patchcord H-RP0X can be used to complete prototype configurations.
Caractéristiques / spécifications techniques
Factory-tested, ready-to-install plug-to-plug cordsets for harsh environments. Amphenol Socapex offers IPC/WHMA-A-620 Class 3 H-PAC cordsets with TV F472 plugs featuring integrated backshells. Designed for prototyping and short lead times, these assemblies provide configurable connectivity for demanding sectors such as ground vehicles, remote weapon turrets, battlefield communications, military avionics and industrial systems.
Key features
- Reduced lead time
- Heat-shrinkable protection option
- Straight wiring (standard)
- TV F472 plugs with integrated backshells
- Straight or 90° boots
- Optional EMI shielding
- Halogen-free option
- Customizable length up to 10 meters
Applications
- Battlefield communications
- Ground vehicles
- Military avionics
- Industrial applications
Technical information
Amphenol Socapex H-PAC cordsets are IPC/WHMA-A-620 Class 3 plug-to-plug assemblies using TV F472 plugs available in all layouts and five finishes. They are factory tested and supplied ready for prototyping. Options include EMI shielding, coding, various wire choices, end caps and customized lengths up to 10 meters. Cordsets are available with straight or 90° plug configurations. Receptacle patchcord H-RP0X can be used to complete prototype configurations.
Caractéristiques / spécifications techniques
- Series / Model: H-PAC
- Connector type: TV F472 plug (TV plugs with integrated backshells)
- Quality / Standard: IPC/WHMA-A-620 Class 3
- Finishes available for TV F472 plugs: Black Zinc Nickel; Black Zinc Nickel (without CrVI); Olive Drab Cadmium; Nickel; Bronze
- Protection: Heat-shrinkable protection option
- EMI: EMI protection / shielding option
- Material / Safety option: Halogen-free option available
- Wiring: Straight wiring (standard) — also available with various wire choices
- Boots: Straight or 90° boots
- Maximum length: Customizable up to 10 meters
- Testing: Factory tested, delivered ready to install
- Customization: Coding, wires, caps and other personalization options available
- Complementary product: Receptacle Patchcord H-RP0X for prototype configurations
