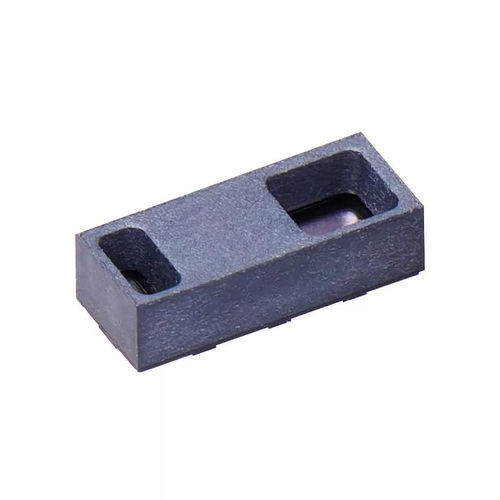

Infrared proximity sensor TMD2621rectangularsurface-mountprogrammable
Add to favorites
Compare this product
Characteristics
- Technology
- infrared
- Shape
- rectangular
- Mounting
- surface-mount
- Other characteristics
- programmable
- Length
4.65 mm
(0.18 in)- Width
1.86 mm
(0.07 in)- Process temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
The TMD2621 features an advanced proximity measurement. The device integrates an IR VCSEL and an advanced VCSEL driver within an optimized 4.65mm x 1.86mm x 1.3mm OLGA package.
Details
Features
Integrated factory calibrated 940nm IR VCSEL
Display synchronization with highly programmable Proximity Start Delay (PSD)
Crosstalk and ambient light cancellation
Optimized sensitivity and noise level
Wide configuration range
1.8V power supply with 1.8V I2C bus
Configurable sleep mode
Interrupt driven device
Proximity saturation flag
VSYNC status check
Benefits
Proximity detection behind OLED displays
Low power consumption
Integrated status checking for all functions
