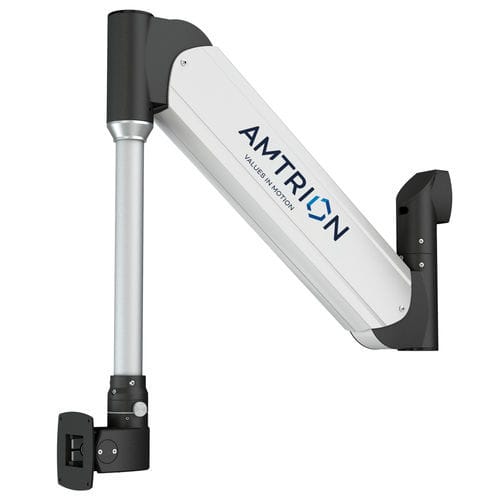

Control box support arm system HMA I-Lift 25

for control panelsfor flat screensfor medium loads

Variable height adjustable suspension arm with HMA I-080 foot joint mount and HMA I-040 head joint mount Default colours Cover: RAL 7035 (Light grey) Bearings: RAL 7016 (Anthracite grey) Special colours on request Base and head joint can be mounted to face upwards and downwards 4 system lengths available Vertical swivel angle +/- 40° with continuously variable stroke limiter to +/- 0° Restraint-guided load suspension at head joint Stroke locking with operator release (option) Fine adjustment of the load capacity range (TLB) using adjusting screw Load range exclusive vertical tube and attachments Horizontal swing angle 300° with rotation limiter adjustable in 30° steps Low maintenance
