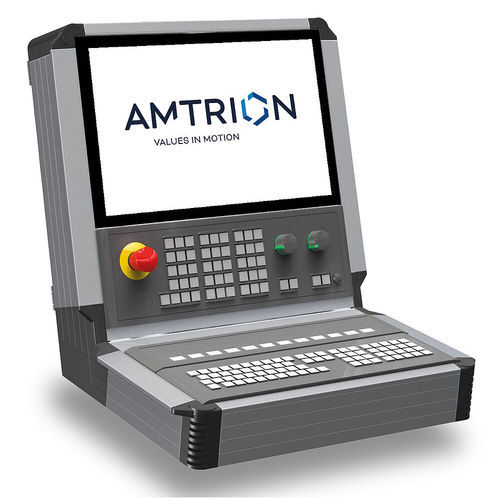

Panel-mount box PLG TWINfloor-standingVESA mountingmobile
Add to favorites
Compare this product
Characteristics
- Construction
- panel-mount, floor-standing, VESA mounting, mobile
- Configuration
- rectangular, modular, square
- Material
- aluminum, aluminum profile
- Application
- industrial, indoor, for controllers
- Protection level
- IP54, IP54
- Other characteristics
- custom, large, medium-sized, ergonomic, with corner guard, with hinged cover, control
- Width
Max.: 541 mm
(21.3 in)Min.: 441 mm
(17.4 in)- Height
Max.: 916 mm
(36.1 in)Min.: 350 mm
(13.8 in)- Depth
Max.: 540 mm
(21.26 in)Min.: 384 mm
(15.12 in)
Description
Control boxes with ergonomically angled operator panel made from extruded aluminium profile
Default colours
Profiles: E6EV1 (anodized light)
Corners: RAL 7016 (Anthracite grey)
Special colours on request
Profiles available / combinable in different forms and depths
Basic: 130 (a) / 90 (d) mm, 210 (a) / 130 (d) mm
Touch: 130 (a) / 90 (d) mm, 210 (a) / 130 (d) mm
The operator panel can be angled at 20° out of the horizontal plane for ergonomic operation
Flexible design of the installation areas in desk and monitor segments
Compatible with PLG accessories
Ideal combination options with products from the AMTRION suspension and lift system programme for almost any application
Optimal arrangement of keyboard and monitor
Easy fi tting of the installation components thanks to continuous cable routes
Front plates can be installed from the outside with a stay bolt. Likewise, diverse controls can be installed directly
Low maintenance
Default colours
Profiles: E6EV1 (anodized light)
Corners: RAL 7016 (Anthracite grey)
Special colours on request
Profiles available / combinable in different forms and depths
Basic: 130 (a) / 90 (d) mm, 210 (a) / 130 (d) mm
Touch: 130 (a) / 90 (d) mm, 210 (a) / 130 (d) mm
The operator panel can be angled at 20° out of the horizontal plane for ergonomic operation
Flexible design of the installation areas in desk and monitor segments
Compatible with PLG accessories
Ideal combination options with products from the AMTRION suspension and lift system programme for almost any application
Optimal arrangement of keyboard and monitor
Easy fi tting of the installation components thanks to continuous cable routes
Front plates can be installed from the outside with a stay bolt. Likewise, diverse controls can be installed directly
Low maintenance
