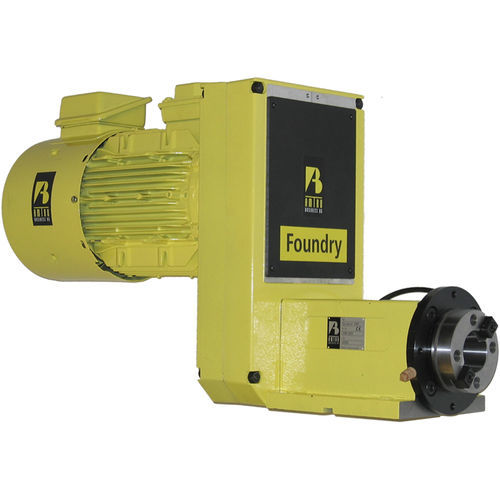

Milling spindle unit Eccocut 200for cuttingdeburringmotorized

milling spindle unit
milling spindle unit
Add to favorites
Compare this product
indicative price

Characteristics

Function
milling, for cutting, deburring
Other characteristics
motorized
Rotational speed

Min.: 1,500 rpm (9,424.78 rad.min-1)

Max.: 9,520 rpm (59,815.92 rad.min-1)

Description

The ECCOCUT machining units are very sturdy and precise and very well suited to remove large and thick burrs on castings. They can be used for tangential and front end milling. Together with the corresponding mills they can be used for almost any metallic and nonmetallic materials. Article-No. 3151.200 3151.210 3151.250 3151.260 3151.270 3151.280 3151.290 Power 3.0 kW 3.0 kW 5.5 kW 5.5 kW 5.5 kW 5.5 kW 5.5 kW Idling speed at 50 Hz 9'200 rpm 5'800 rpm 9'200 rpm 5'800 rpm 3'870 rpm 2'900 rpm 1'450 rpm Maximal speed 12'000 rpm 9'000 rpm 12'000 rpm 9'000 rpm 6'000 rpm 4'500 rpm 2'500 rpm Rated torque 3.2 Nm 5.0 Nm 5.7 Nm 9.1 Nm 13.6 Nm 18.1 Nm 36.2 Nm Weight 60 kg 60 kg 69 kg 69 kg 69 kg 69 kg 69 kg

VIDEO
