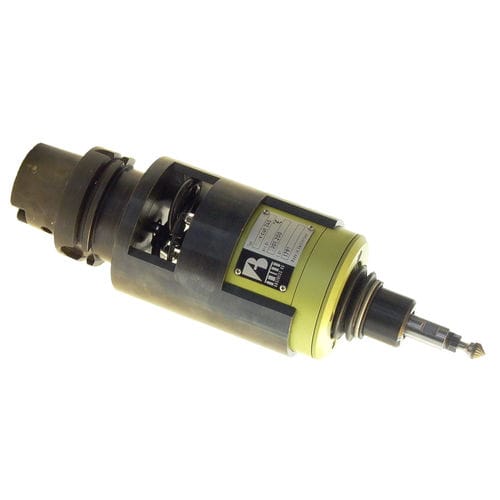

Deburring spindle Flexicut 250-HSK80

machiningprocessair-driven

The CNC-Flexicut 250 can be used in machining centre to remove economically burrs generated in the machining process. The CNC-Flexicut follows the undefined part edges between machined and raw surfaces. It can compensate edge deviations of up to 8 mm Article-No. 3105.261 Tool adapter HSK 80 Powered by Air motor Power 240 W Idling speed 35'000 rpm Compliance radial in all directions ± 4.2° / ± 8 mm (at collet) Compliance torque 1.04 Nm (2.54 ft lbs) at 6 bar (87 psi) Compliance force 8 N at 6 bar (87 psi) (at collet) Feed forward rate 2 - 15 m/min Air consumption 7.5 l/s (15.9 cfm) Air supply Through the main spindle op the machining centre Air treatment Service unit with filter and oiler, set for 2-3 drops/min Collet Ø 6 mm (optional 3 & 8 mm & 1/4 Weight 6.0 kg (13.2 lb)
