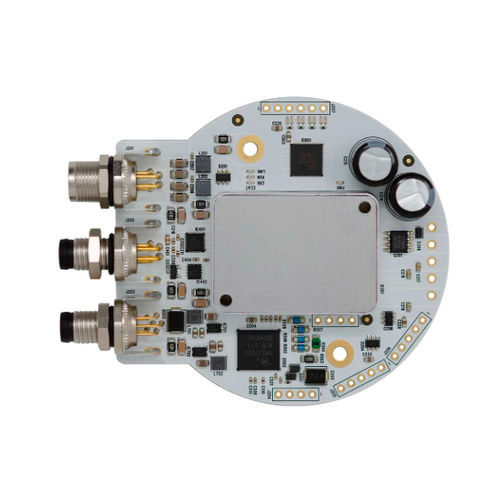

Evaluation board TMCM-1617-GRIP-REF

Single axis BLDC servo driver for up to 2.5 A RMS motor current +24 V Nominal Supply Voltage (+20 V to +28 V) Digital Hall sensor interface ABN encoder interface 4 Digital +24 V I/O (highside switch, push-pull driver, or a Type 1 and 3, or Type 2 digital input) 1 Analog output (±12.5 V output voltage range, or ±25 mA or ±2.5 mA output current range) 1 Differential analog input (±15 V, ±2.5 V, ±500 mV, ±250 mV, and ±125 mV input voltage ranges) 2.5ARMS, 20 to 28V
